10m³
| Size: | |
|---|---|
| Quantity: | |
Specification Model | 10/1.6 | 10/2.5 | 10/3.5 |
Effective Volume（L） | 9450 | 9450 | 9450 |
Geometric Volume（L） | 10000 | 10000 | 10000 |
Storage Medium | LO₂ | LO₂ | LO₂ |
Dimensions (mm) (by base) | 2850×2800×3390 | 2850×2800×3390 | 2850×2800×3390 |
Design Pressure（Mpa） | 1.65 | 2.55 | 3.35 |
Work Pressure（Mpa） | 1.6 | 2.5 | 3.5 |
Container Safety（Mpa） | 1.7 | 2.65 | 3.45 |
Container bursting disc (secondary safety valve)（Mpa） | 1.81 | 2.8 | 3.68 |
Shell Material | InsideS30408/OutsideQ345R | InsideS30408/OutsideQ345R | InsideS30408/OutsideQ345R |
Daily Evaporation Rate | LN₂≤0.35 | LN₂≤0.35 | LN₂≤0.35 |
Net Weight Of Equipment（Kg） | 4248 | 4443 | 4643 |
It provides stable low-temperature liquid sources for laboratories in universities, scientific research institutions and R&D centers, supporting experiments in materials science, life sciences and other cutting-edge fields.
It is used for cold assembly of precision parts, low-temperature material testing, and provides protective gas for argon arc welding, effectively improving welding quality and processing accuracy.
It supplies liquid nitrogen for quick freezing of high-end food such as seafood, fruits and pastries, retaining nutritional components and original taste. It can also be used as a temporary cold source for small refrigerated trucks and containers.
In beauty & medical industry, it supports cryolipolysis projects and serves as backup oxygen source for hospitals. It is also suitable for remote construction sites and mining areas as stable or emergency gas supply device.
Operators must hold professional certificates and be familiar with the operating manual. Before use, check valve status, pipeline tightness and liquid level data to ensure all parts work normally.
Equipped with safety valves and bursting discs with model-specific parameters, such as 2.65MPa safety pressure and 2.8MPa bursting disc pressure for 10/2.5 model. Regular calibration of safety accessories is essential for safe operation.
Regularly detect interlayer vacuum degree and insulation layer integrity. The daily evaporation rate of liquid nitrogen is controlled within 0.35%, lower than industry average, ensuring long-term stable performance.
National standard S30408 stainless steel and Q345R steel are selected, and processed by cutting, stamping and rolling according to design drawings to form inner and outer containers with precise dimensions.

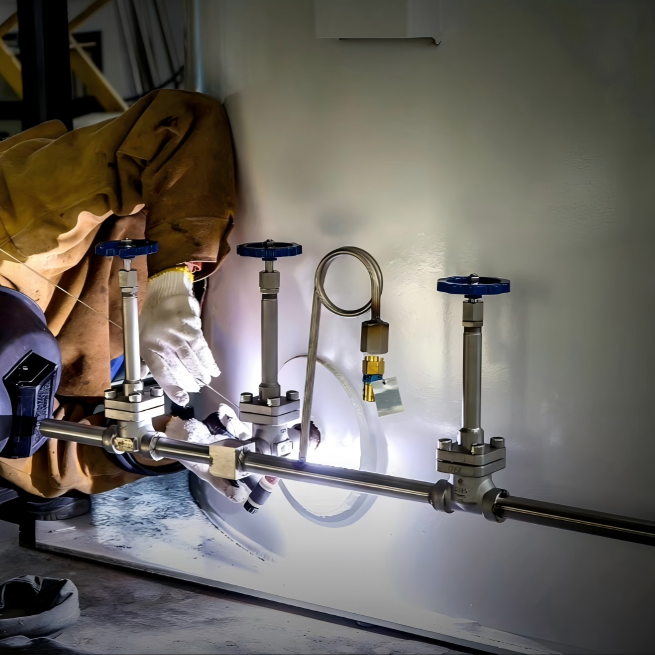

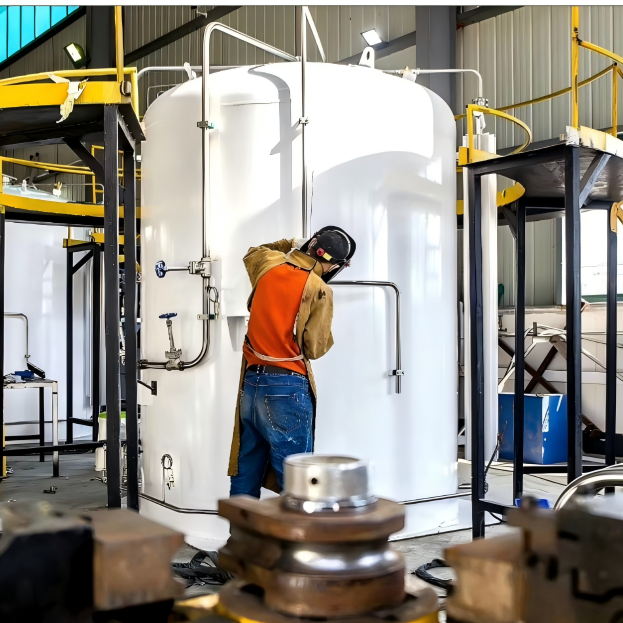

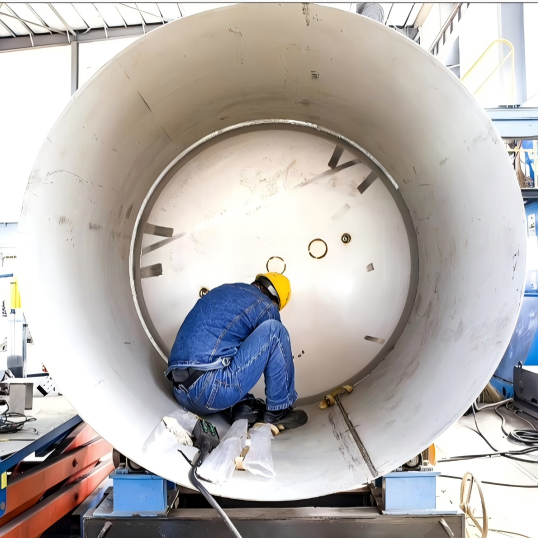

Advanced welding technology is adopted for inner and outer containers, and welds are subject to non-destructive testing to eliminate cracks, air holes and other defects, ensuring welding quality.
Supporting devices are installed between layers, high-efficiency insulation materials are filled, and the interlayer is evacuated to form a high vacuum environment, achieving excellent thermal insulation effect.

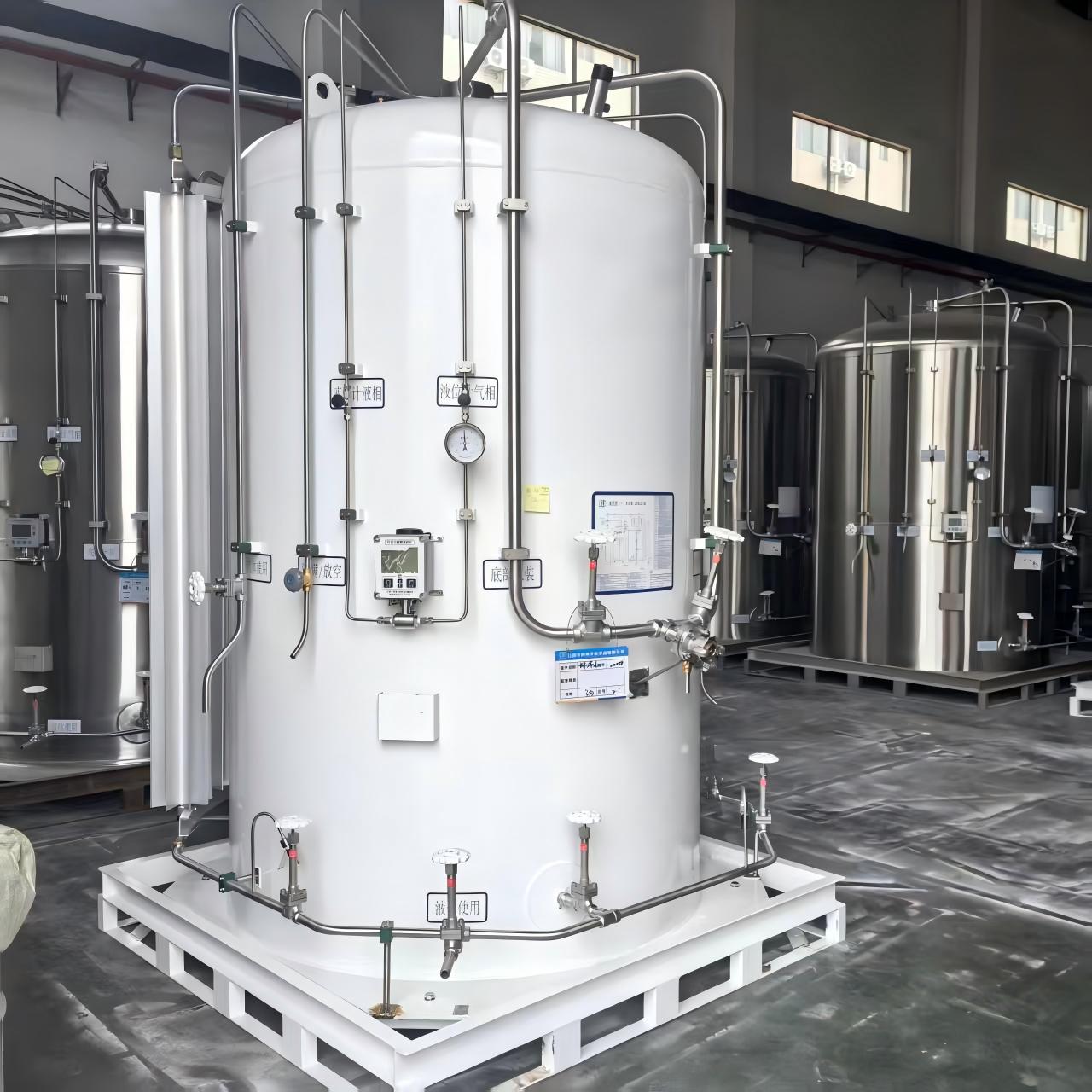

Accessories such as electronic scales, remote monitoring systems and valves are assembled, and integrated debugging is conducted. After passing strict pressure test and leakage test, factory qualification certificate is issued and delivery is arranged.

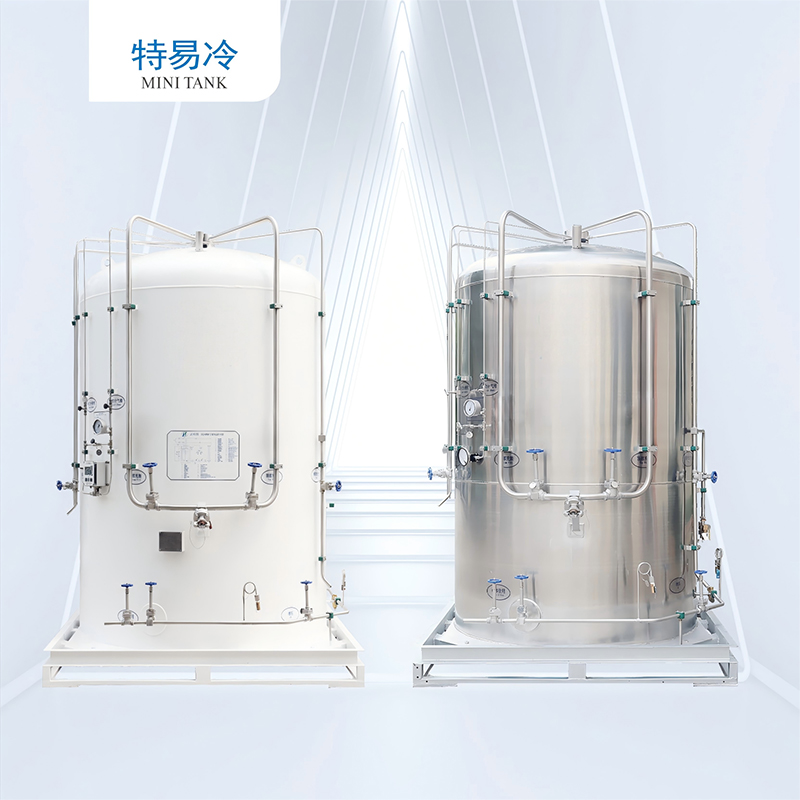

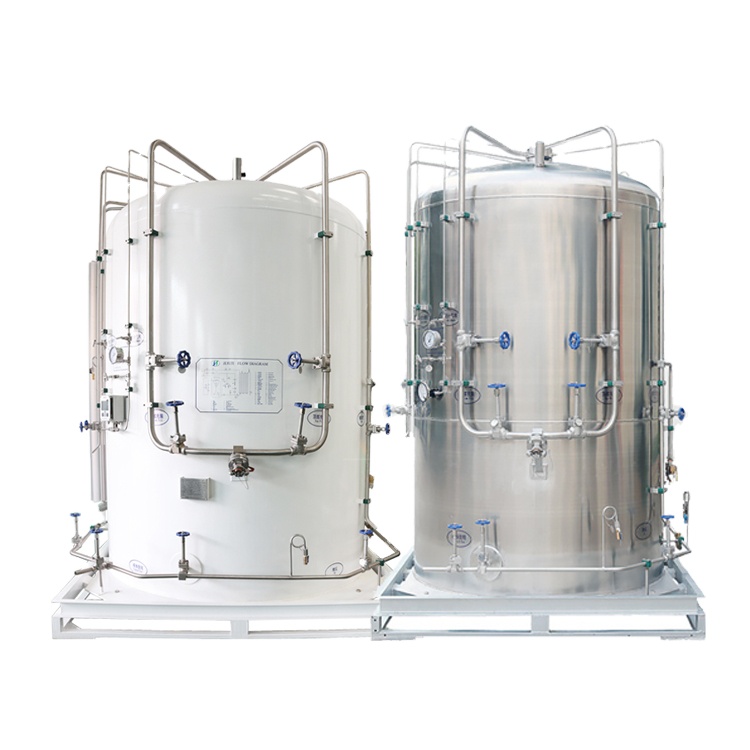

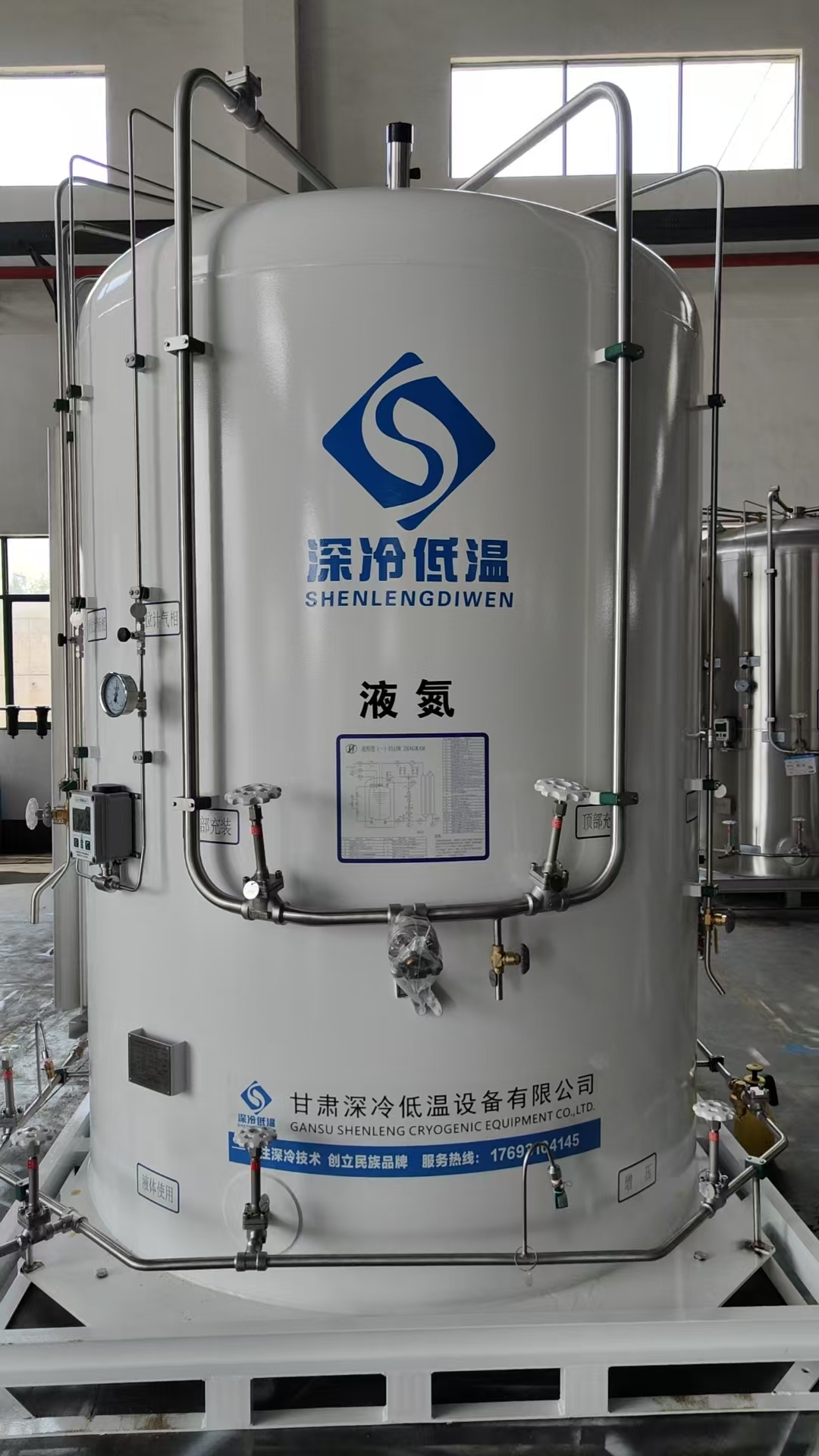

It is a mobile self-pressurized low-temperature storage tank, mainly used for storage and supply of liquid nitrogen, liquid oxygen, liquid argon and other low-temperature media.
Inner container is S30408 stainless steel, outer shell is Q345R steel, featuring corrosion resistance, high strength and long service life.
3-year vacuum warranty and 1-year warranty for valves and other accessories, ensuring customers’ worry-free use.
The cycle is 10–45 days, adjustable according to customer’s order quantity and customization requirements.
