Self-pressurized Liquid Nitrogen Tank YDZ-500

Liquid nitrogen supplement series liquid nitrogen tank
The self-pressurized liquid nitrogen tank uses a small amount of liquid nitrogen in the tank to vaporize to generate pressure, so that the container can automatically discharge liquid nitrogen, so as to supplement liquid nitrogen for other containers. It is mainly used for the transportation and storage of liquid media, and can also be used as a cold source for other refrigeration devices. It can be equipped with liquid nitrogen tank monitoring terminal and monitoring software, which can realize the remote transmission of liquid nitrogen liquid level, pressure and other data, realize low liquid level, overpressure remote alarm, and manual remote pressurization and control liquid replenishment.

At present, it is used in mold industry, animal husbandry, medicine, semiconductor, food, low-temperature chemical industry, aerospace, military and other industries.

Model:
YDZ-500

Size:	YDZ-500W
Availability:

Quantity:



Inquire Add to Basket

Product Description

| Product Overview

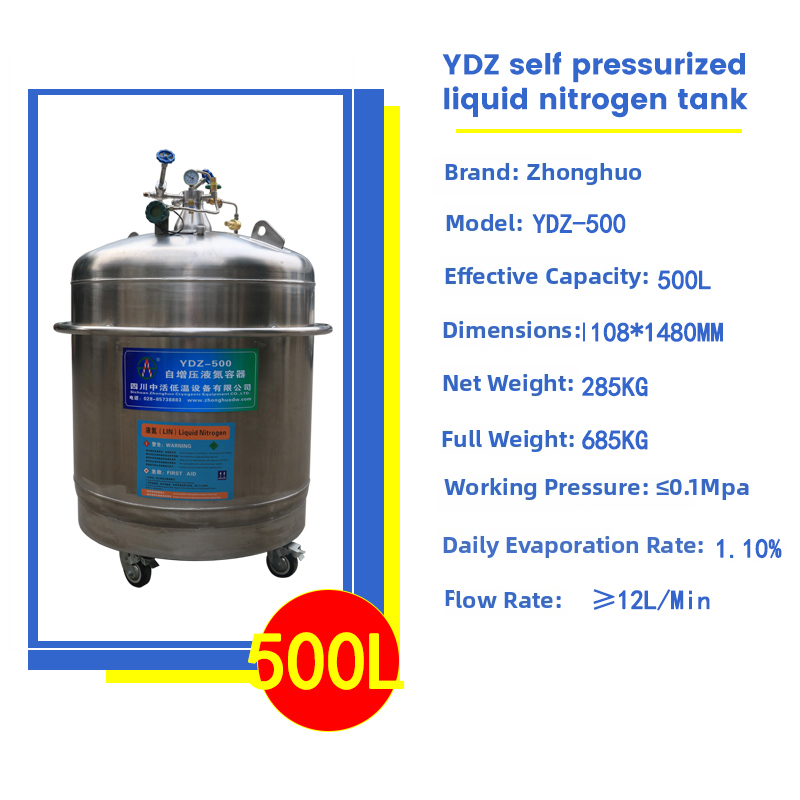

The YDZ-500 Self-Pressurized Liquid Nitrogen Tank is a high-performance 500L cryogenic equipment designed for integrated liquid nitrogen storage and transportation. Adopting advanced self-pressurization technology, this tank realizes automatic liquid discharge through the vaporization of liquid nitrogen inside, eliminating the need for manual pouring or external pumps. Made of high-quality austenitic stainless steel, it combines excellent insulation performance and structural stability, making it an ideal choice for biomedical, animal husbandry, industrial and laboratory scenarios that require reliable low-temperature storage and flexible liquid nitrogen supply.

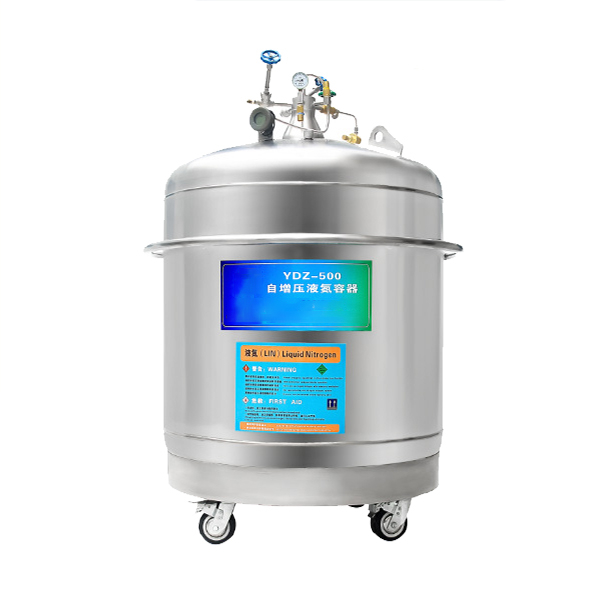

Self-pressurized Liquid Nitrogen Tank YDZ-500

YDZ -Parameter table
model	Geometric volume	Effective volume	Overall dimensions		Empty weight	Full weight	Work pressure	Daily loss rate	Intravenous infusion volume
			external diameter ( mm )	high
YDZ-10	11.5L	10L	355	700	18kg	26kg	≤0.1Mpa	7%	≥2L/Min
YDZ-15	16.5L	15L	355	750	21kg	33kg	≤0.1Mpa	7%	≥2L/Min
YDZ-30	31.5L	30L	405	1050	32kg	56kg	≤0.1Mpa	2.70%	≥2L/Min
YDZ-50	55L	50L	455	1140	40kg	81kg	≤0.1Mpa	2.20%	≥4L/Min
YDZ-100	110L	100L	606	1180	69kg	150kg	≤0.1Mpa	1.30%	≥6L/Min
YDZ-150	160L	150L	706	1200	88kg	208kg	≤0.1Mpa	1.20%	≥8L/Min
YDZ-175	181L	175L	706	1260	98kg	238kg	≤0.1Mpa	1.10%	≥8L/Min
YDZ-200	210L	200L	706	1350	105kg	265kg	≤0.1Mpa	1.10%	≥8L/Min
YDZ-240	252L	240L	706	1480	115kg	307kg	≤0.1Mpa	1.10%	≥8L/Min
YDZ-300	313L	300L	706	1650	128kg	368kg	≤0.1Mpa	1.10%	≥10L/Min
YDZ-500	520L	500L	1108	1480	285kg	685kg	≤0.1Mpa	1.10%	≥12L/Min
YDZ-800	830L	800L	1310	1750	335kg	990kg	≤0.1Mpa	1.10%	≥15L/Min
YDZ-1000	1050L	1000L	1410	1920	375kg	1170kg	≤0.1Mpa	1.10%	≥20L/Min
YDZ-200W	210L	200L	1480*706	840	110kg	270kg	≤0.1Mpa	1.70%	≥6L/Min
YDZ-300W	315L	300L	1680*706	840	195kg	435kg	≤0.1Mpa	1.50%	≥8L/Min
YDZ-500W	520L	500L	1750*1108	1250	290kg	690kg	≤0.1Mpa	1.30%	≥12L/Min
YDZ-950W	1000L	950L	2000*1410	1560	355kg	1120kg	≤0.1Mpa	1.30%	≥20L/Min

| Core Advantages

Integrated Self-Pressurization System

The built-in self-pressurization system of the YDZ-500 liquid nitrogen tank automatically adjusts internal pressure to achieve stable liquid discharge, ensuring continuous and efficient supply of liquid nitrogen. This design simplifies operation processes, reduces labor costs, and avoids potential safety hazards caused by manual operation, perfectly meeting the needs of large-scale liquid nitrogen use.

Superior Insulation & Low Evaporation Rate

Equipped with high-vacuum multi-layer insulation technology, the YDZ-500 self-pressurized liquid nitrogen container effectively blocks heat transfer, reducing the daily evaporation rate to only 1.10%. Compared with ordinary liquid nitrogen tanks, it extends the storage time of liquid nitrogen significantly, lowering the overall use cost for users while ensuring the stability of low-temperature environment (-196°C) for stored items.

Flexible Mobility & Stable Structure

TheYDZ-500 500L liquid nitrogen tank is equipped with high-quality braking casters, allowing easy movement and fixed positioning in laboratories, workshops, and farms. The sturdy stainless steel structure ensures excellent impact resistance and corrosion resistance, adapting to complex working environments. Its reasonable size design balances storage capacity and space occupation, facilitating daily placement and maintenance.

| Application Fields

Biomedical Industry

Ideal for long-term storage of cells, stem cells, vaccines, and biological samples at -196°C, the YDZ-500 liquid nitrogen tank ensures the activity and integrity of biological materials, widely used in hospitals, research institutes, and biotech companies.

Animal Husbandry

It provides safe and reliable storage and transportation for breeding semen (cattle, sheep, etc.), maintaining the viability of semen and supporting the development of intensive animal husbandry.

Industrial & Laboratory Use

Suitable for cryogenic treatment of metal materials, cold source supply for freeze dryers, and low-temperature experiments, meeting the diverse needs of industrial production and scientific research.

| Operation & Safety Guidelines

Before using the YDZ-500 self-pressurized liquid nitrogen tank, pre-cool the tank with a small amount of liquid nitrogen to avoid temperature shock. During filling, ensure the environment is well-ventilated and wear professional protective equipment (gloves, goggles). Regularly check the pressure gauge, safety valve, and sealing performance to ensure safe operation. For detailed operation steps, refer to the product manual.

| Production Process

| FAQ

How to maintain the YDZ-500 liquid nitrogen tank?

Regularly clean the tank interior and exterior, check the insulation performance and pressure components, and store it in a dry and well-ventilated place when not in use to extend service life. It is recommended to conduct a comprehensive inspection every 6 months.

What is the maximum discharge flow of the tank?

The maximum discharge flow can reach 8-15L/min, which can be flexibly adjusted according to actual use needs such as cryogenic treatment and sample cooling.

What purity of liquid nitrogen is suitable for the YDZ-500 tank?

We recommend using liquid nitrogen with a purity of ≥99.999%. High-purity liquid nitrogen avoids contamination of stored samples and prevents blockage of the self-pressurization system, ensuring stable operation of the YDZ-500 self-pressurized liquid nitrogen tank.

What is the service life of the YDZ-500 liquid nitrogen tank?

Under proper use and regular maintenance, the service life of the tank body is 8-10 years. The vacuum insulation performance and sealing parts should be inspected regularly to replace worn components in time and ensure long-term reliable use.

How to maintain the YDZ-500 liquid nitrogen tank?

Regularly clean the tank interior and exterior, check the insulation performance and pressure components, and store it in a dry and well-ventilated place when not in use to extend service life.
