| Application Overview
Cryogenic tank pressure management is, at its core, a thermodynamic lag problem: liquid inside the tank evaporates, absorbs heat, and builds pressure — but this process always lags behind consumption. During draw-off the tank pressure dips then recovers; after filling it spikes then settles. The conventional three-valve approach assigns one device to each function, but the three valves share no sensing feedback loop — they are blind to each other, relying entirely on the operator's experience for manual intervention.

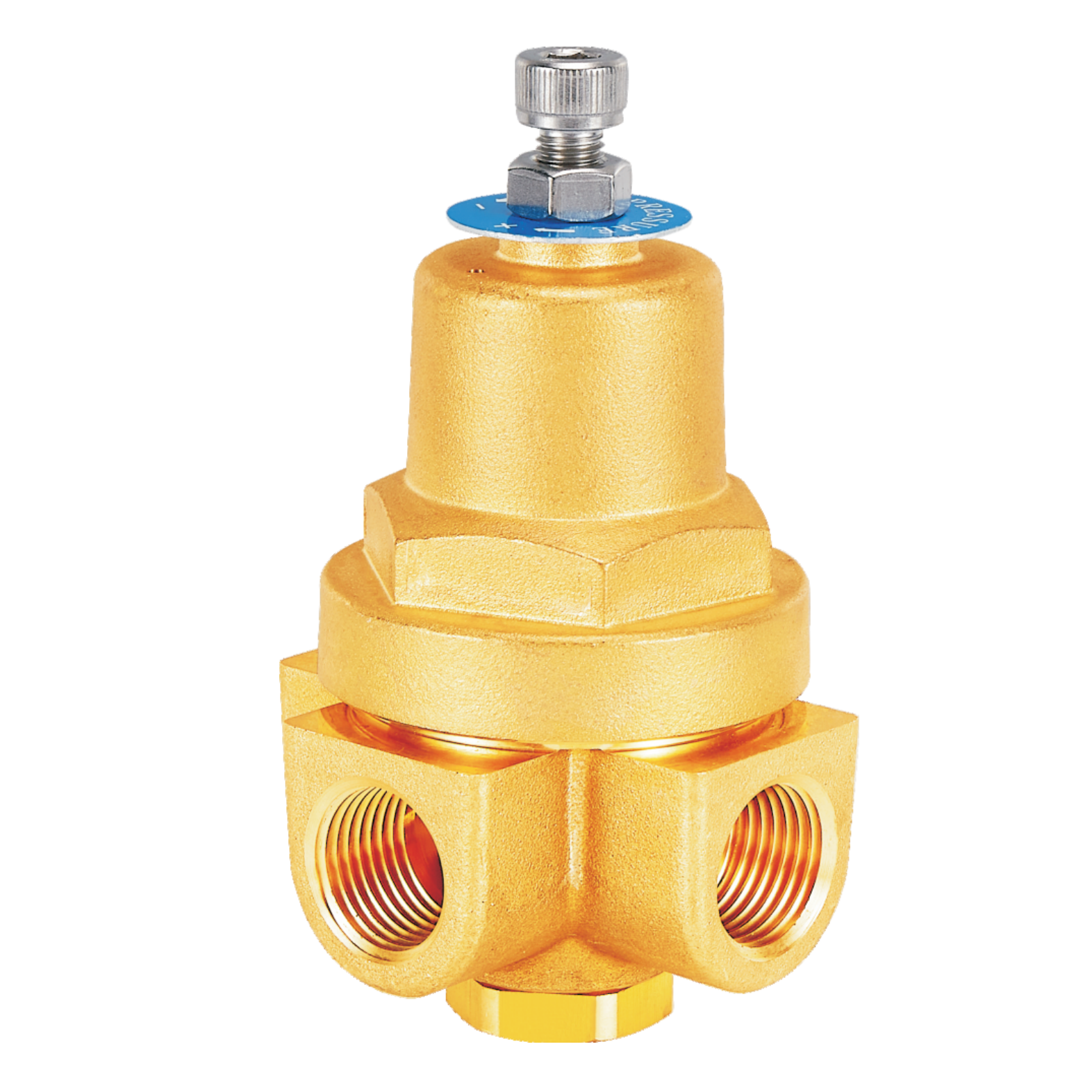

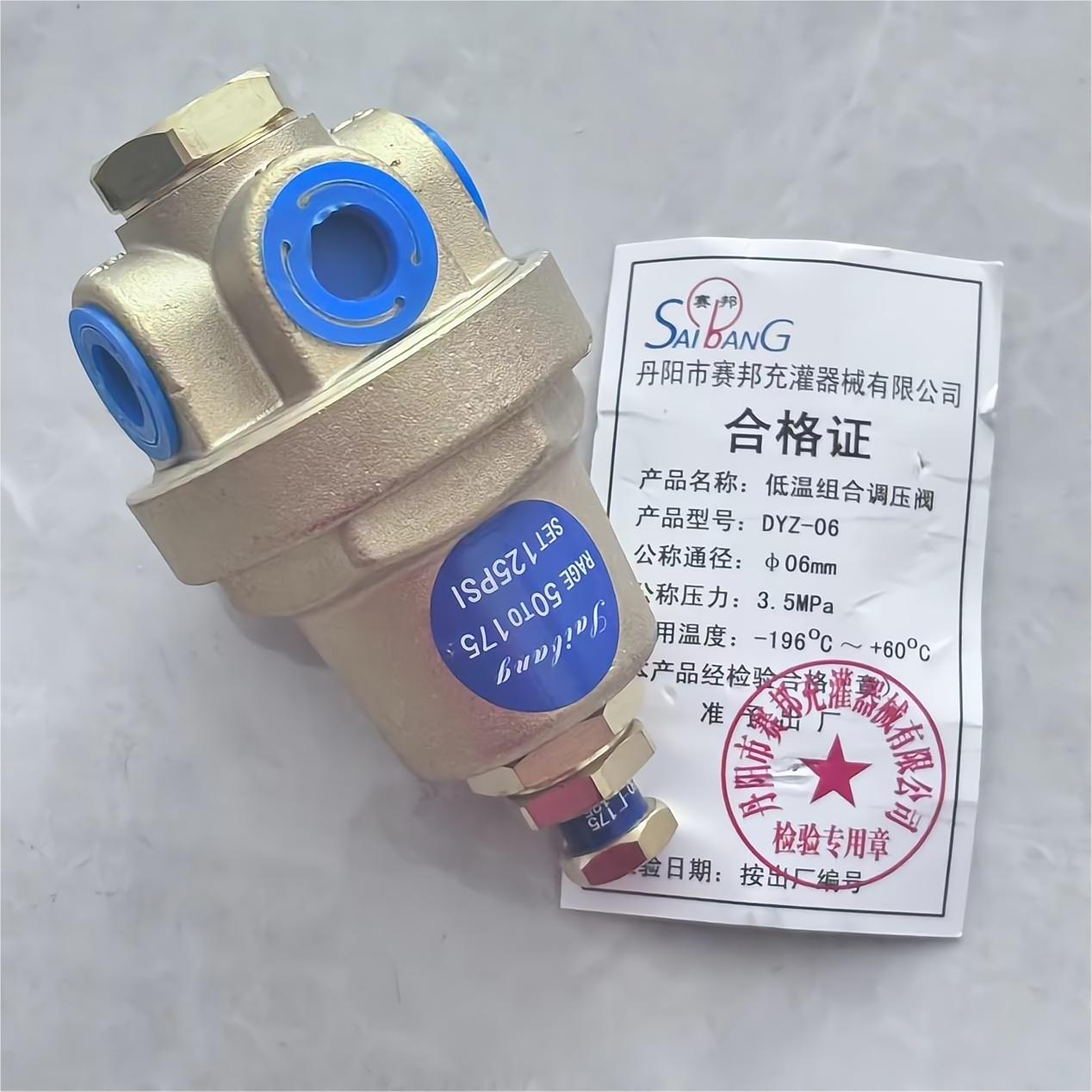

The DYZ15C collapses those three decision points into a single physical logic circuit. At its heart sits a 57 mm bronze diaphragm, one side reading actual tank vapor pressure, the other opposed by an adjustable spring. Every micron of diaphragm movement tracks pressure fluctuations in real time, and the diaphragm, via the stem, directly controls the build-up circuit — this is not "a controller sending a command to a valve"; it is the diaphragm acting as sensor, controller, and actuator simultaneously.

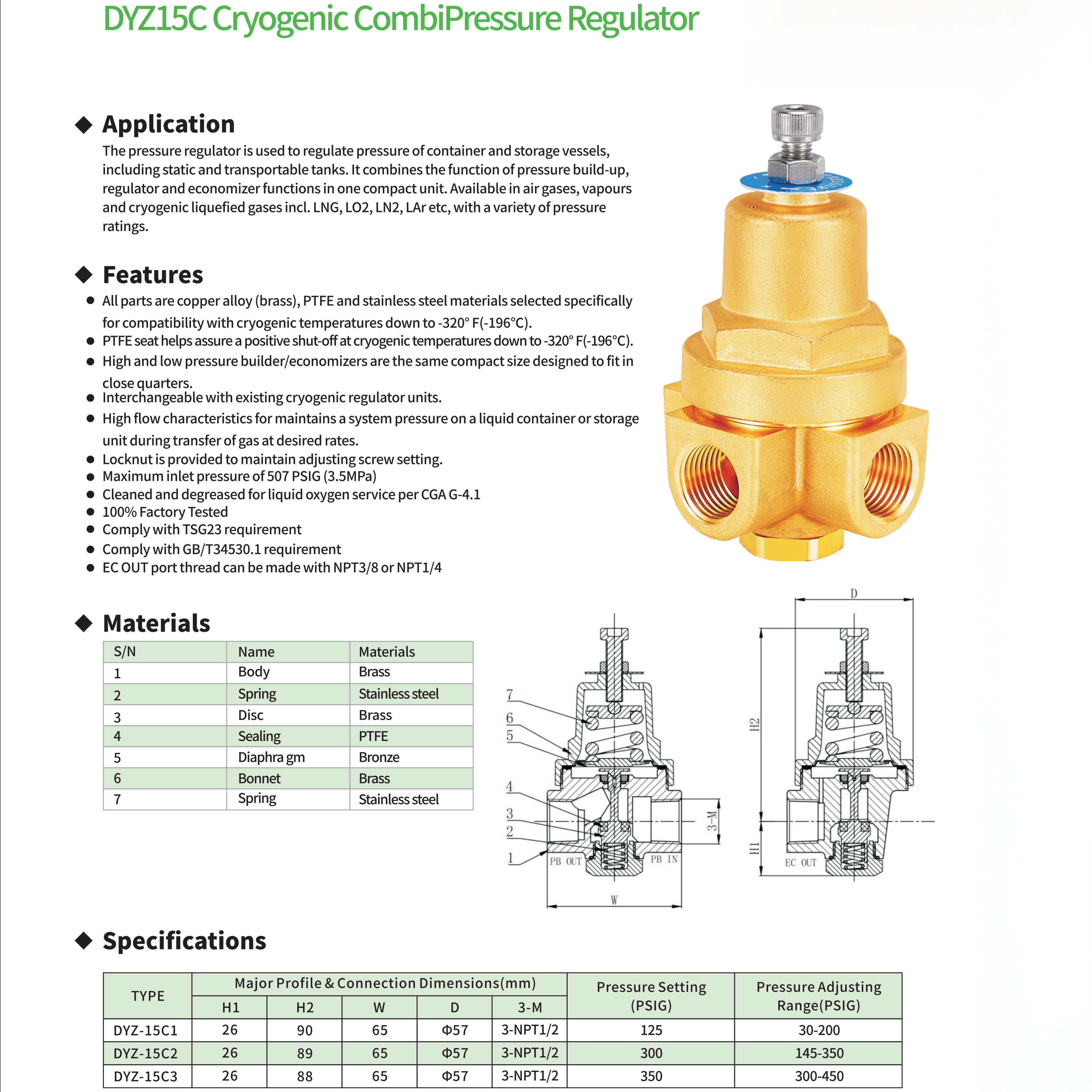

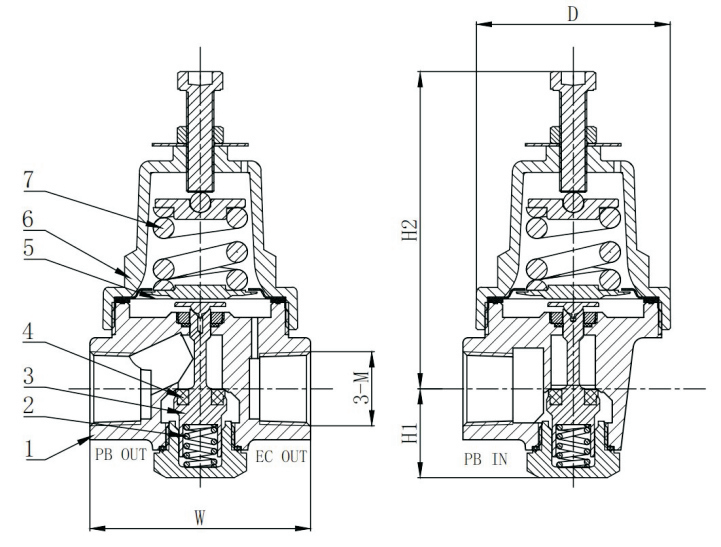

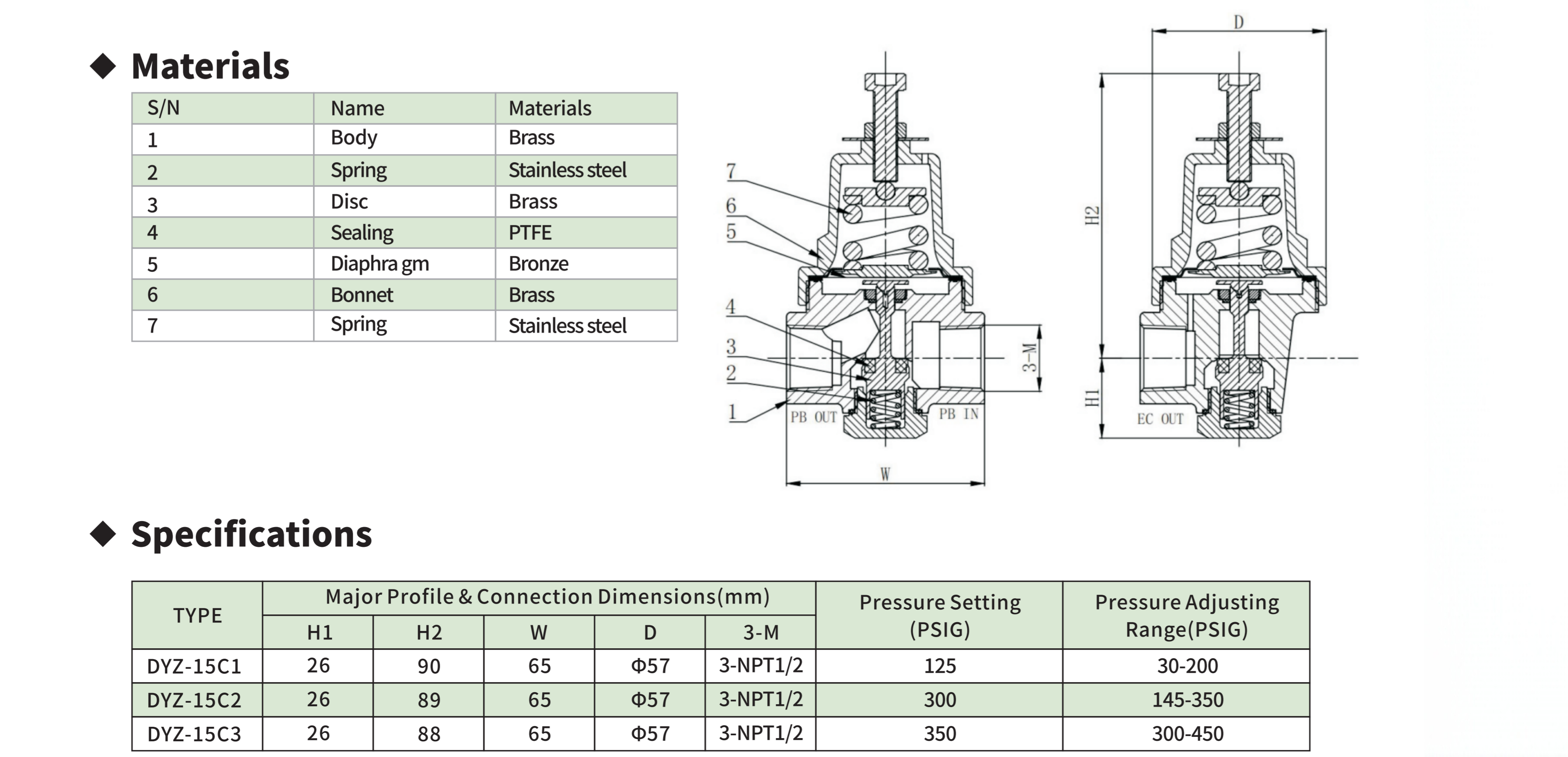

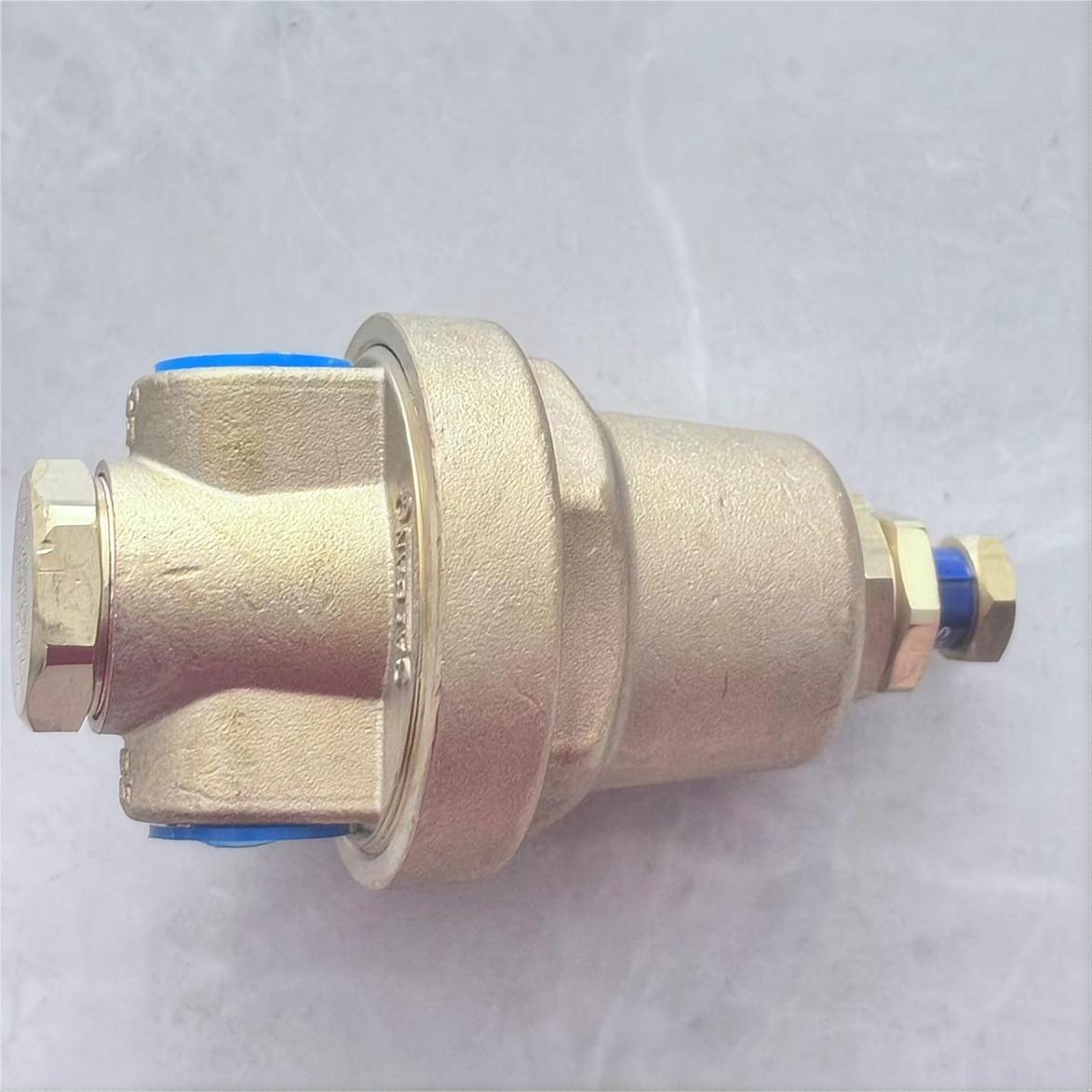

From an engineering perspective, the DYZ15C achieves with 7 components what would otherwise require six tube runs and three separate valves. The brass body carries three NPT 1/2" main flow paths plus an economizer branch available in NPT 3/8" or 1/4". Two stainless steel springs handle preload adjustment and return-seating respectively. A PTFE seat provides positive shut-off at −196°C. Every material choice orbits one central question: how do the thermal contraction rates and friction coefficients of dissimilar materials pair at liquid-nitrogen temperatures to deliver reliable sealing without cryogenic galling?
Compatible with LNG, LO₂, LN₂, LAr, and air gases. Factory-degreased per CGA G-4.1, 100% functionally tested, preset and locked. Compliant with TSG 23 and GB/T 34530.1.
| Working Principle
Understanding the three-in-one through thermodynamics
Step outside the valve itself for a moment and consider what is happening inside a cryogenic storage tank under active gas withdrawal.
The tank's top holds vapor (gaseous product), and its bottom holds liquid. When a downstream valve opens, vapor is drawn off, and tank pressure drops. Ideally, liquid would immediately boil off to replenish the vapor space — but physically, evaporation requires absorbing heat from the environment (latent heat of vaporization), and the tank's insulation is deliberately designed to block heat ingress. The tank is trapped in a contradiction: gas withdrawal vastly outpaces natural evaporation replenishment, so pressure continues to fall.
The conventional fix is an external pressure-build-up coil — a loop that pulls a small liquid stream from the tank bottom, lets ambient air warm and vaporize it, then feeds the resulting gas back into the tank's vapor space. This creates an artificial "fast evaporation pathway." The problem: when should this pathway open? How wide? When should it close? A manual valve relies on human judgment. An electric valve relies on a pressure transducer and PLC. The DYZ15C's answer: let the tank pressure decide for itself.
Two forces, two opposing wills
The DYZ15C diaphragm's lower side is in direct communication with the tank vapor space. Its upper side is opposed by a spring whose preload you set — that is your chosen set pressure.
When tank pressure drops below setpoint → spring force overcomes the gas force → the disc is pushed open → PB IN→PB OUT circuit activates → liquid flows into the coil, vaporizes, returns to the tank top → pressure begins to rise.
When tank pressure reaches setpoint → forces equalize → diaphragm centers → disc seats onto PTFE → PB circuit closes → pressure locks.
When tank pressure exceeds setpoint → vapor pressure pushes the diaphragm to its upper limit → disc stays seated → PB circuit remains closed → EC OUT economizer port now delivers vapor directly from the tank's vapor space to the downstream equipment. Note that EC OUT is open throughout the operating cycle — it is simply that during low-pressure phases the PB circuit runs alongside it, while during high-pressure phases the PB circuit is off and ECO flow dominates. This ensures downstream supply priority is never compromised — irrespective of tank pressure, the user never loses gas.
A thermodynamic closed loop
The transition between these three states is a spontaneous oscillation whose frequency is dictated entirely by the rhythm of gas consumption and ambient temperature. On a hot summer day with low gas draw, the cycle may run only a few times per day. In a heavy-welding workshop with continuous draw-off, a full build-up→cut-off→supply cycle may complete in minutes. Each micron of diaphragm deformation executes an implicit PID control loop — proportional term defined by spring stiffness, integral term by tank thermal mass and coil heat-exchange area, derivative term by liquid-line flow resistance. But there is no code involved, just brass and bronze deforming mechanically at liquid-nitrogen temperature.
|
Factory Shoot
1: What is the difference between DYZ15C and DYZ15A?
A: Which should I buy? They are sister models on the same platform with identical specs. DYZ15C is the current main production batch; DYZ15A is a legacy-compatible model. Dimensions, threads, pressure ratings, and installation are all identical — directly interchangeable. For new purchases, DYZ15C is recommended.
2. Why does the DYZ15 series have only three pressure ratings (125/300/350) without a 500 PSIG option?
A: This reflects actual demand distribution in the DN15 mid-size tank market: the 500 PSIG demand concentrates in DN6 compact tanks (covered by the DYZ06 series), while DN15 tanks operate predominantly between 125–350 PSIG. If your application genuinely needs NPT 1/2" + 500 PSIG, contact sales about custom builds (MOQ 50 units).
3. Why can EC OUT be ordered in NPT 3/8" or NPT 1/4" rather than a uniform NPT 1/2"?
A: The economizer flow is typically one-third to half that of the build-up circuit. Using NPT 1/2" would oversize the EC OUT line, adding unnecessary cost and making three parallel NPT 1/2" tube runs extremely cramped in tight installations. The two options match existing downstream tubing — if your downstream line is narrow (e.g., feeding a manifold), use 1/4" for a direct fit; if you want more flow margin, use 3/8". Neither option affects valve function.
4. How thick does external ice need to be before it's abnormal? How do I quickly tell if frost is normal or indicates a leak?
A: Normal frost: a uniform thin layer of white frost over the entire external valve surface (like freezer frost), wipes off with a fingertip, consistent thickness. This indicates the whole body is being uniformly cooled by the cryogen passing through. Abnormal signals: localized thick ice around a single port → micro-leak at the fitting, trace liquid weeping out and flash-vaporizing against the valve surface, causing local supercooling at that one spot; ice on top of the bonnet → diaphragm dynamic seal leak, cold gas escaping from the diaphragm's upper chamber; thick ice on the PB IN side but no frost on PB OUT → internal blockage in the build-up circuit, liquid flowing in but not out. Field quick check: tap the iced area gently with a screwdriver handle — normal frost gives a dull, uniform thud; abnormal thick ice sounds crisper with a hollow ring, suggesting an air gap between the ice layer and valve body.
5. If the build-up coil is covered by external debris (e.g., construction-site plastic sheeting or insulation wool), will it affect DYZ15C operation?
A: Yes — at the level of the valve's working principle. A covered coil prevents ambient air from effectively heating the liquid inside, drastically reducing vaporization efficiency. The typical symptom: tank pressure stays persistently low, and the PB IN→PB OUT circuit remains continuously open (the diaphragm never sees enough pressure), but because the liquid inside the coil is only partially vaporized, what actually returns to the tank is a wet two-phase stream — possibly mostly liquid — so pressure build-up is negligible. Visually, this is hard to diagnose: the DYZ15C itself shows no fault, operates normally, yet tank pressure won't rise. Field check: feel the coil wall temperature distribution. Normally the coil should feel ice-cold near the PB IN end and warm or ambient near the PB OUT end. If the entire coil is ice-cold from end to end, the coil is not completing vaporization — this is a coil heat-transfer failure, not a DYZ15C fault.
6.Any special considerations for using the DYZ15C in a fully enclosed space, such as a containerized LNG supply skid?
A:Containerized skids present two distinct risks: Reduced coil heat transfer due to poor ventilation. Build-up coils rely on natural ambient air convection — in a sealed container with stagnant air, a cold boundary layer rapidly forms around the coil, reducing heat transfer by 40–60% compared to open-air installation. If a container-mounted DYZ15C builds pressure noticeably slower than an identical outdoor unit, first check whether forced ventilation or a fan has been added near the coil. Enclosed-space leak accumulation. In open air, micro-leaks from the valve or fittings disperse naturally. Inside a container, cold gases (especially nitrogen and argon) pool at floor level, creating an asphyxiation hazard. Install an oxygen monitor inside the container and position the EC OUT line fitting near the ventilation opening. The valve itself requires no special modification — these risks arise from the installation environment, not a design fault in the valve.
