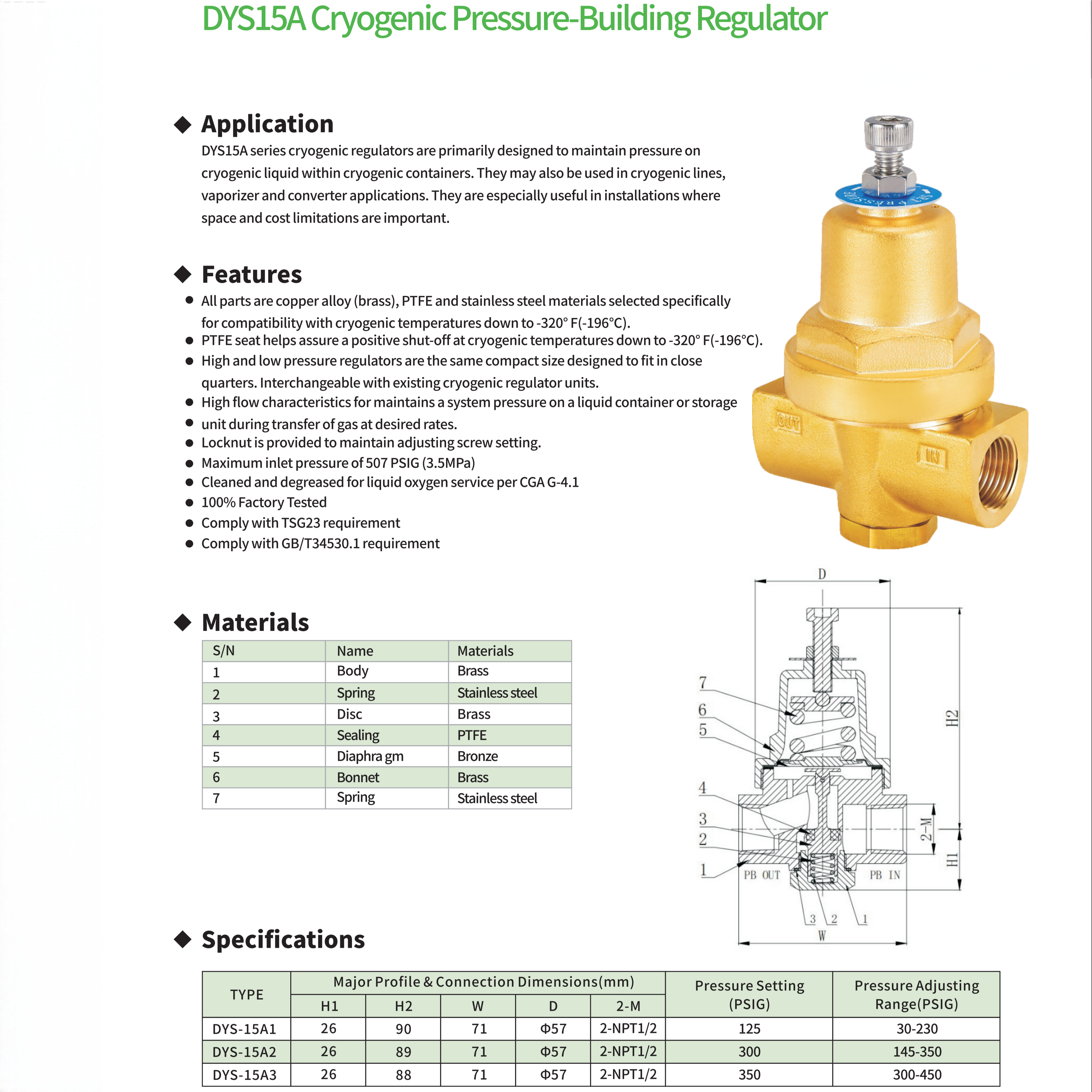

| Application Overview
If someone asks, "Why make a single-function valve when a combi unit already exists?" the answer lies under the chassis of containerized LNG supply skids and liquid-nitrogen tankers — where space is so tight that every extra pipe run adds a fitting, and every extra fitting adds a potential leak point. The DYS15A is a device that does one thing and does it thoroughly: pressure building, nothing else.
The DYZ series' three-in-one logic compresses build-up + shut-off + economizer into a single body, with four line connections and three functions orchestrated by one diaphragm. But in some applications the economizer circuit is genuinely unused — for example, in a bank of LOX Dewar flasks fed by a dedicated vaporizer, the EC OUT port is capped from day one. In such cases, the extra line on a three-in-one unit becomes a liability: it consumes space, adds fitting count, and forces an extra bend in the plumbing layout.

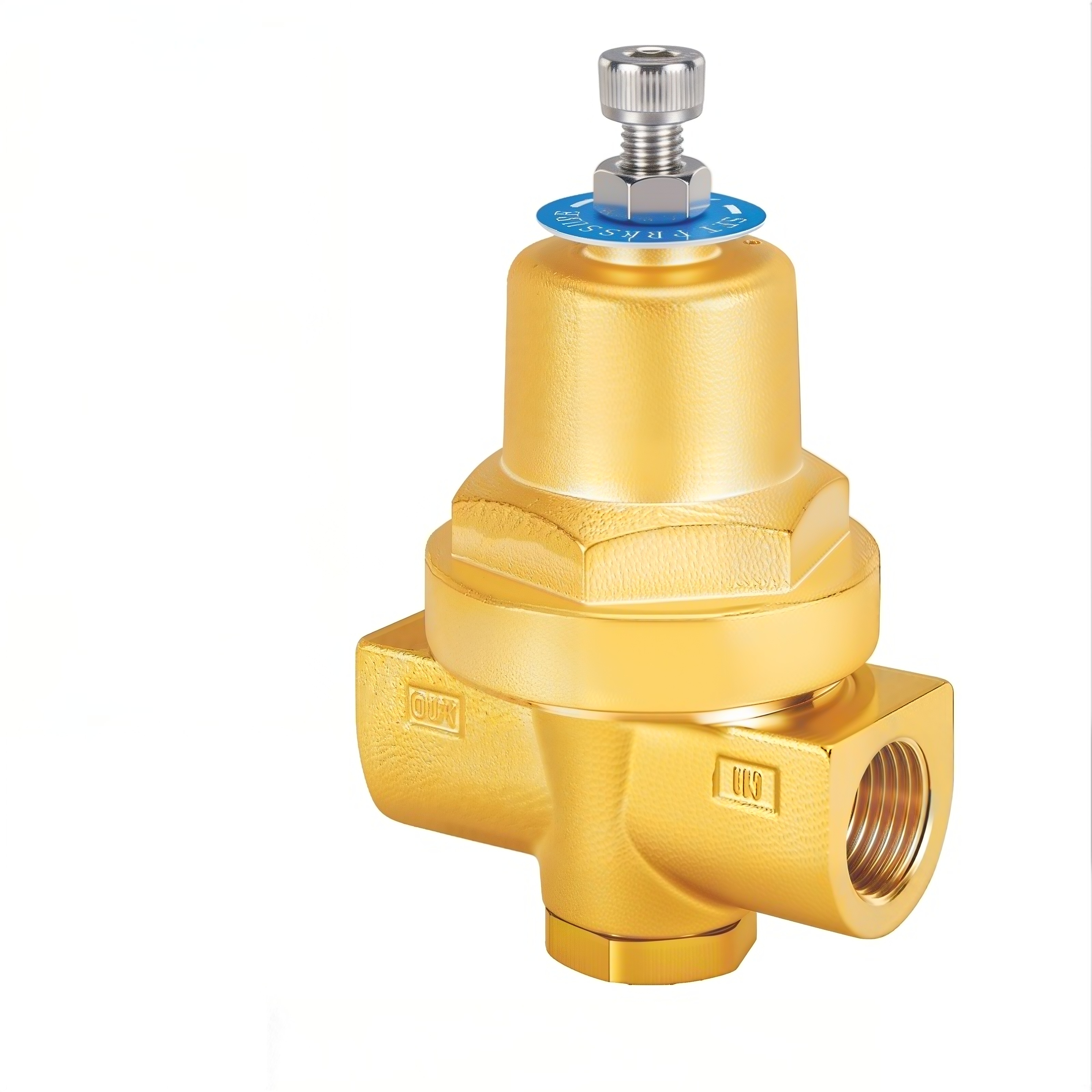

The DYS15A removes the EC OUT entirely, leaving just PB IN and PB OUT, both NPT 1/2". Width increases slightly from the DYZ15's 65 mm to 71 mm — this modest gain preserves internal flow-path cross-section in the two-port layout — while height and diameter remain identical. Inside is the same proven brass body / bronze diaphragm / dual stainless spring / PTFE seat architecture, but the control logic has been simplified to a single rule: tank pressure low → open; tank pressure adequate → close. No ECO priority logic, no dual-circuit switching, no economizer vs. builder flow-path conflict. Single-responsibility design yields a response roughly 15–20% faster than the three-in-one (the disc no longer wastes travel balancing between three ports), and maintenance is more straightforward — open it up and only the PB circuit needs inspection.
Compatible with LNG, LO₂, LN₂, LAr, and air gases. Factory-degreased per CGA G-4.1, 100% functionally tested, preset and locked. Compliant with TSG 23 and GB/T 34530.1.
| Working Principle
A straight line of logic
Unlike the DYZ series' three-circuit orchestration, the DYS15A follows a single working path: PB IN → disc → PB OUT. No branches, no economizer contending for the flow path, no three-port switching. Think of it as the inverse logic of a unidirectional check valve — a check valve opens under fluid pressure and closes under spring or gravity; the DYS15A does the exact opposite: it closes under tank vapor pressure, and opens under spring force.
Only one force-balance equation runs at any moment:
Below the diaphragm: actual tank vapor-space pressure (via the PB IN line communicating with the tank's gas-side bottom)
Above the diaphragm:spring preload + atmospheric pressure
The two forces oppose each other. When tank pressure is below the spring-set threshold, the spring wins — the diaphragm moves up slightly → stem lifts the disc → PB IN and PB OUT connect. Liquid flows from the tank bottom into the build-up coil under the pressure differential, is heated and vaporized by ambient air, returns as gas through PB OUT to the tank top — pressure begins to rise.
Once tank pressure reaches setpoint, the vapor pressure overcomes the spring, the diaphragm moves down → stem drops → disc reseats onto the PTFE face → PB circuit closes. The entire sequence requires no external power, sensors, or electronic control.
Why a standalone unit — reverse-engineering the two-port design intent

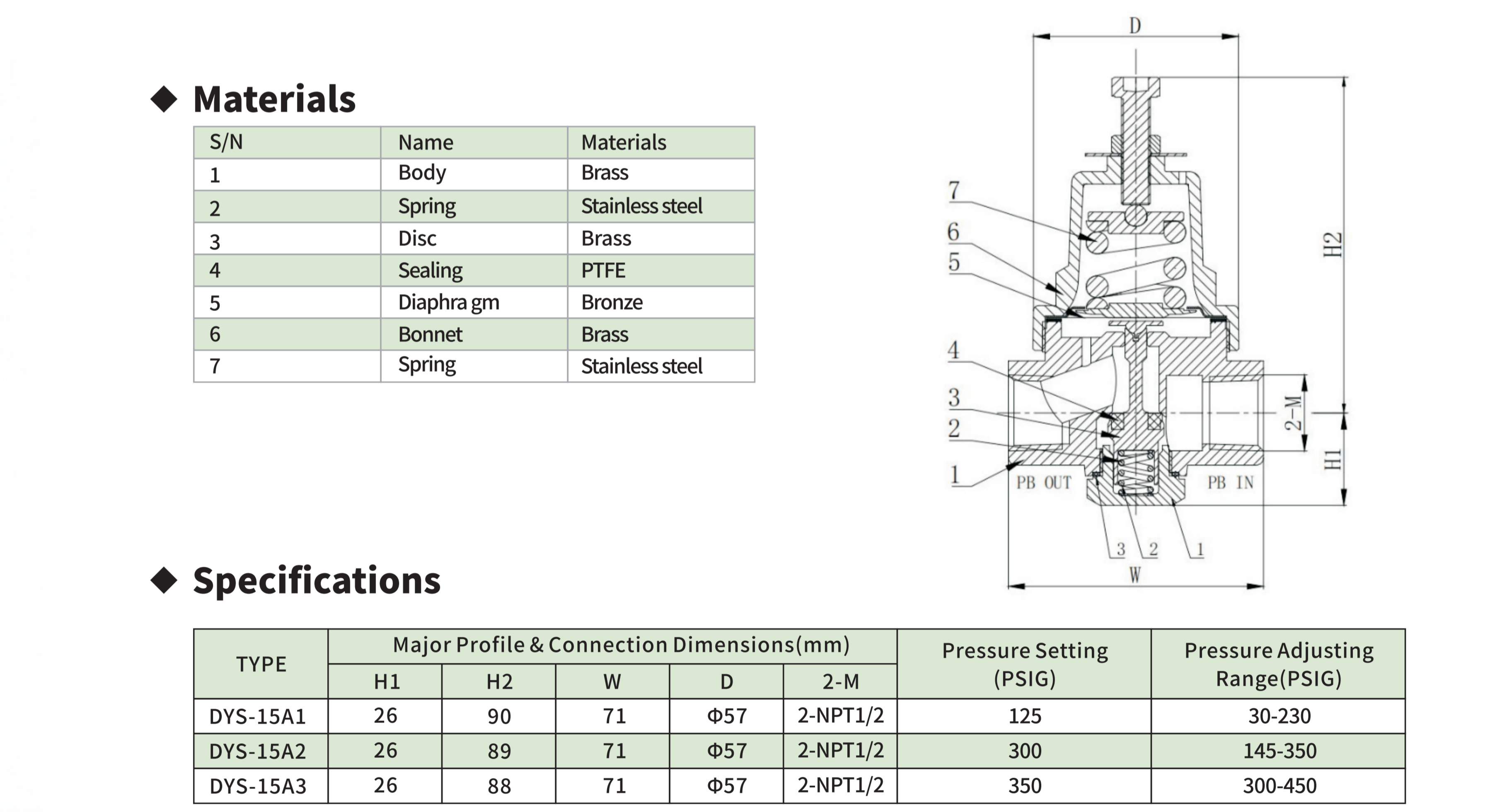

If you compare the cross-sections of DYZ15 and DYS15A, the relative positions of the diaphragm, springs, and disc are almost identical. The only real difference is the body flow-path topology. The DYZ15 packs three ports (PB IN / PB OUT / EC OUT) and three corresponding internal flow paths into a 65 mm width. The DYS15A removes the entire EC OUT branch and reallocates that freed space toward enhancing the straight-through character of the PB IN→PB OUT main passage — and the width actually increases to 71 mm.
This counterintuitive dimensional shift tells you one thing: the DYS15A is not a "DYZ15 stripped-down version." It is an independent product with dedicated flow-path optimization for the single PB circuit. With no EC branch causing fluid-split losses and no requirement for the disc to simultaneously handle two channels, the disc's travel is shorter and more direct — the delay from diaphragm pressure sensing to disc actuation is noticeably smaller than in the three-in-one architecture.
A quick mental experiment
Picture a 2000L liquid-nitrogen tank that begins continuous gas withdrawal at noon. Tank pressure drops from 200 PSIG to 110 PSIG. With a DYS15A installed (set at 300 PSIG):
At 110 PSIG, spring force overcomes the diaphragm → PB circuit opens → liquid enters the coil → vaporizes → tank pressure rebounds
At 300 PSIG, the diaphragm centers → PB circuit closes
One complete build-up→cut-off cycle finishes
The difference from a combi valve lies in the "tank pressure exceeds setpoint" phase: the combi valve opens the EC OUT path (drawing vapor directly from the tank top), while the DYS15A has no such function. But if your downstream already has a dedicated vaporizer and pressure-regulating station, tank-top vapor is already routed through that independent supply line — EC OUT is just a capped port to you. In this scenario, the DYS15A is not merely adequate; it eliminates one potential leak source entirely.
|
Factory Shoot
1: What is the core difference between DYS15A and DYZ15C, and how do I choose?
A: The DYS series is a single-function pressure-building regulator (pressure build-up only); the DYZ series is a three-in-one combi unit (build-up + shut-off + economizer). Quick selection logic: if your tank's downstream has a dedicated vaporizer and pressure-regulating station → DYS15A (EC OUT is unused; removing it eliminates one potential leak point); if your tank draws vapor directly from the tank-top gas space (directly feeding a manifold or welding station) → DYZ15C (economizer supplies vapor first, saving a downstream regulating stage); if your installation space is extremely tight and every extra tube run hurts → DYS15A (two fewer fittings, one fewer pipe run). The two are dimensionally interchangeable at the mounting footprint (H1 and D are identical), but DYS15A requires only two pipe runs while DYZ15C requires three.
2. Why is the DYS15A wider (71 mm) than the DYZ15C (65 mm) despite having only two NPT 1/2" ports?
A: This dimensional change directly reflects design intent — the DYS15A takes the internal space freed by removing the EC OUT branch and reallocates it to making the PB IN→PB OUT main passage a more direct, straighter flow path. In the three-in-one valve, the PB main path must angle around the EC branch inside the body; the single-function valve has no such constraint, yielding a straighter path with lower flow resistance. The extra 6 mm width maintains sufficient disc seat area and main passage cross-section — this is not wasted space; it is space applied to the bottleneck.
3. What happens if PB IN and PB OUT are swapped?
A: t won't damage the valve, but it won't work at all. The PB IN port's internal passage leads directly to the pressure-sensing chamber below the diaphragm — meaning the diaphragm reads tank vapor pressure through the PB IN path. If PB OUT is mistakenly connected to the tank's bottom liquid line, the diaphragm will never read actual tank vapor pressure changes; the disc will remain locked shut or oscillate in an erroneous state. Quick field check: the PB IN port typically carries a letter marking or arrow, and its internal passage to the sensing chamber is shorter. If after installation the tank pressure stays persistently low and the PB circuit never opens, the first thing to check is whether PB IN and PB OUT have been swapped.
4. Under what conditions does the locknut loosen, and how can you prevent it?
A: Three scenarios dominate: road-transport vibration — sustained low-frequency vibration during long-haul tanker or containerized skid travel is the number-one cause; before shipping, draw an alignment mark across the nut and bonnet with a permanent marker for instant visual confirmation on arrival; thermal-cycling clearance gaps — the bonnet (brass) and adjusting screw (stainless steel) have different thermal contraction rates, and after repeated −196°C ↔ ambient cycling, micron-scale gaps can open, loosening nut preload by 5–10% — usually not enough to drift the setpoint, but check annually; accidental contact — a tool or elbow bumping the adjusting screw top during tank maintenance. For severe-vibration environments (e.g., an LNG supply station next to a diesel generator skid), add a thin jam nut above the locknut or apply a single drop of Loctite 242 (note: apply at ambient temperature; it will not cure until the body warms up).
5. What is the typical service life of the DYS15A and when should it be preemptively replaced?
A: The body itself lasts indefinitely — brass has no low-temperature ductile-to-brittle transition issue. What matters are three wear items: PTFE seat → 2–3 years / 800–1200 cycles; failure mode: PB circuit leaks slowly, failing to fully close near setpoint. Bronze diaphragm → 4–5 years; failure mode: setpoint drifts progressively lower and cannot be corrected (diaphragm "stiffening"). Static bonnet-body seal → 3 years (replace together with PTFE seat); failure mode: ice or trace liquid at the bonnet-body seam. Recommended preemptive interval: at 3 years of service plus >600 cumulative cycles, install a seal service kit (PTFE seat + diaphragm + static seal + return spring). The job takes about 20 minutes; the body stays in place.
