DQS25A Cryogenic Diverter (5Way) Valves

| Product Overview

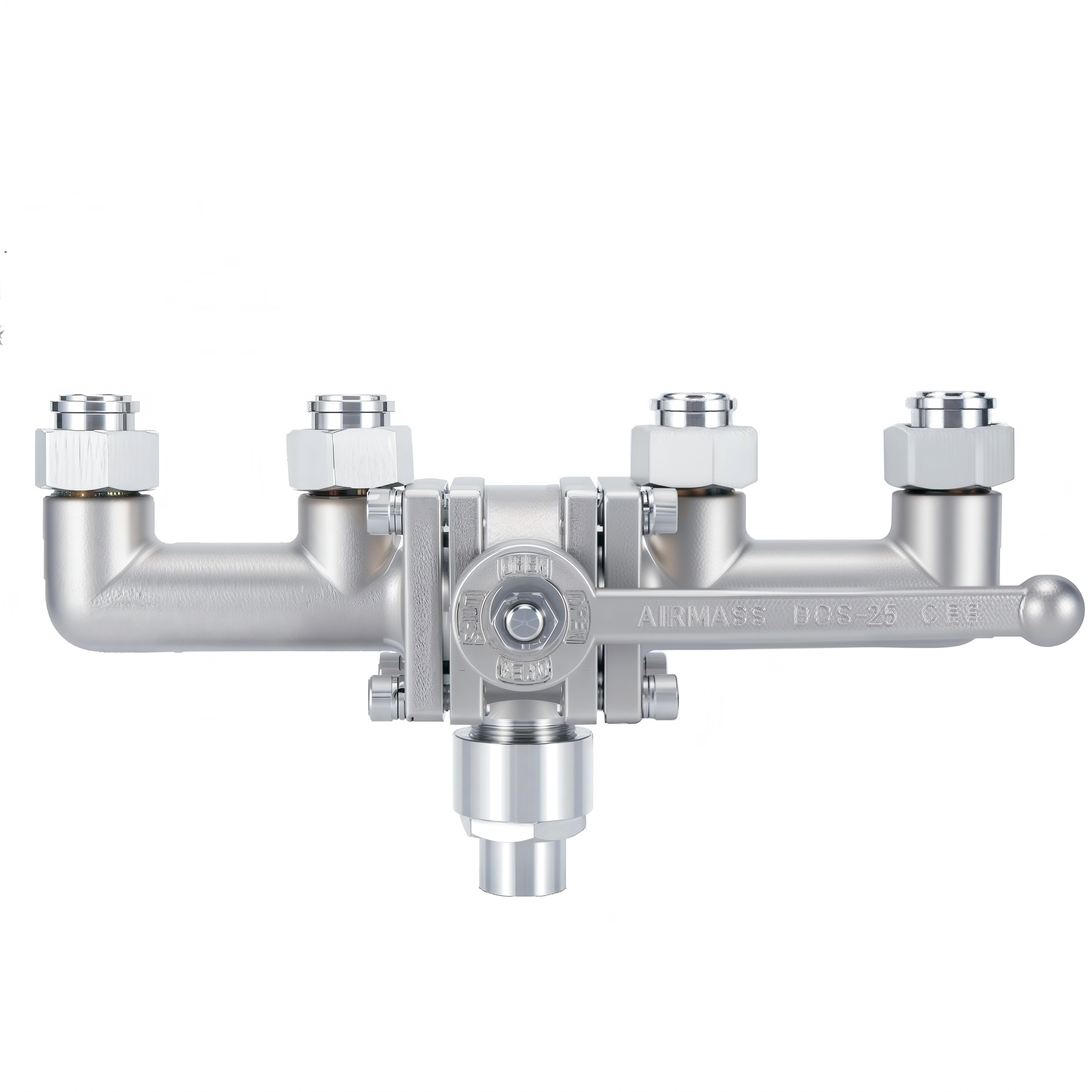

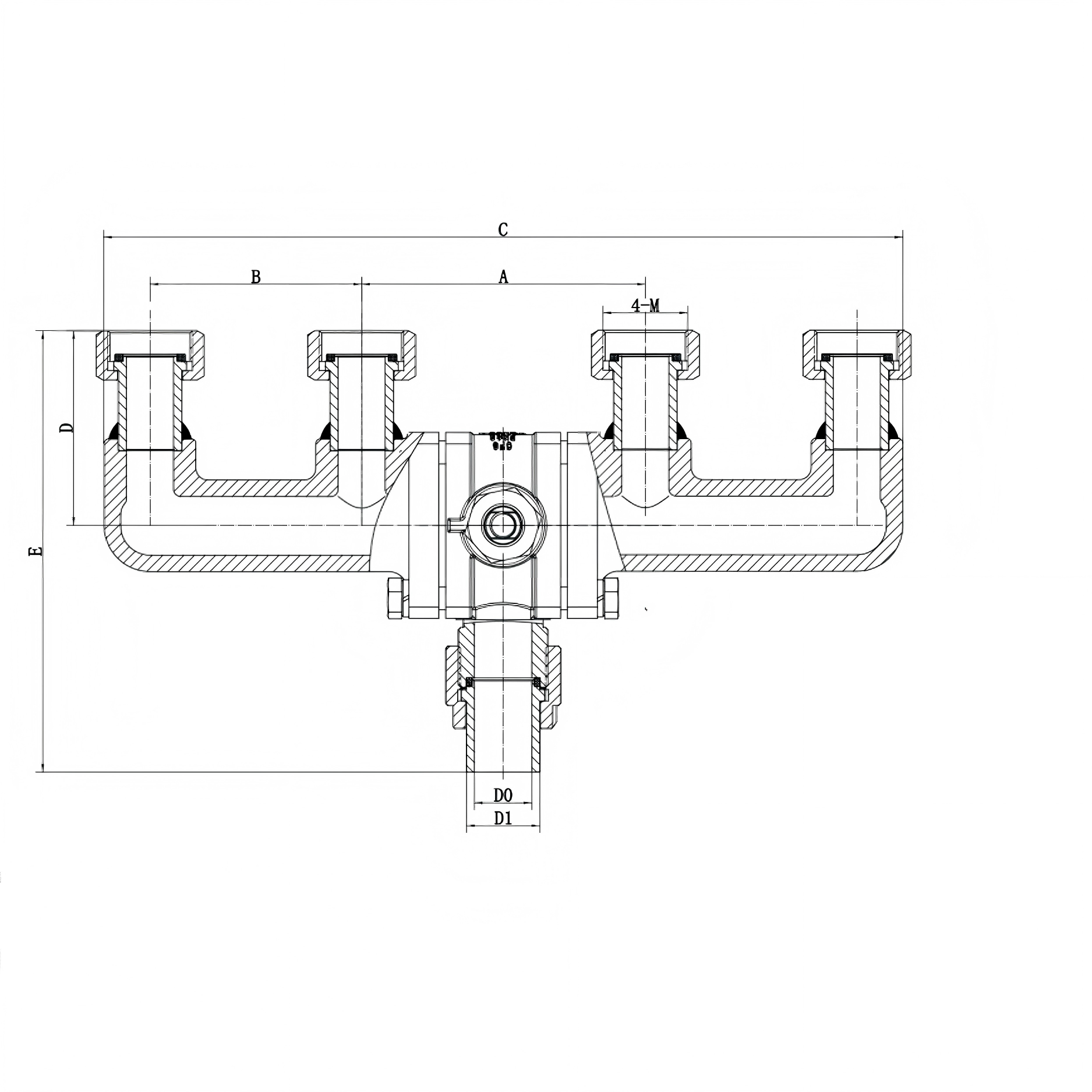

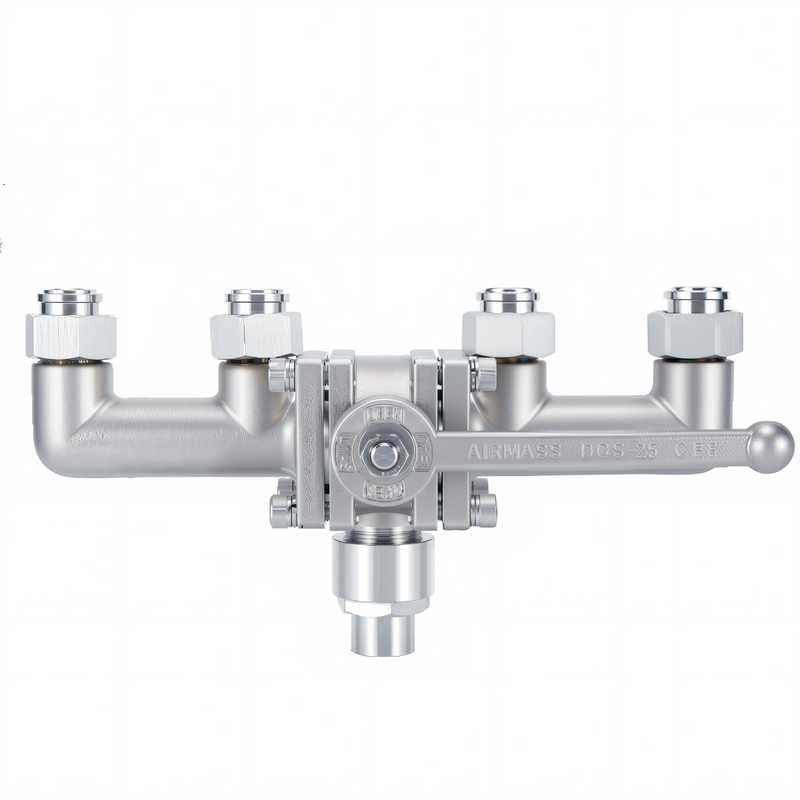

The DQS25A is a cryogenic five-way (5-Way) diverter ball valve engineered for multi-port flow routing and relief-device integration in deep-cryogenic systems operating from −196°C to +85°C. It is a larger-capacity member of the DQS diverter family, complementing the compact DQS15-series valves: its five-port configuration (four side ports and one bottom port) and larger bore are sized for higher-flow service on cryogenic storage vessels, transport tank trucks, and LNG systems. With a simple quarter-turn (90°) rotation of the manual handle, the ball redirects the cryogenic flow among the ports—diverting, blending, or isolating flow across several branches from a single valve.

The valve is built for the full industrial gas spectrum—LOX (liquid oxygen), LIN (liquid nitrogen), LAr (liquid argon), and LNG (liquefied natural gas)—rated for working pressures up to 600 psig (41.37 bar). Its stainless steel cast body provides structural strength, cryogenic toughness, and corrosion resistance, paired with PCTFE seat rings and a brass seat for the conformable, low-leakage sealing required at −196°C where metal-to-metal seats fail through differential thermal contraction.

Three design features matter most in field service. First, the anti blow-out stem is mechanically retained so the stem cannot be ejected by internal pressure—a critical safety requirement for pressurized liquefied-gas service. Second, the full bore (full port) flow path keeps the flow area equal to the line size, minimizing pressure drop and maximizing flow rate for high-capacity cryogenic transfer. Third, the swivel nut connections allow the inlet/outlet to be rotationally adjusted during installation, easing alignment and protecting the body from torsional stress caused by pipe contraction and expansion.

The DQS25A's most distinctive operational advantage is its support for relief-valve replacement without draining the line ("tool-free" service): the valve is designed so a safety/relief device can be swapped out on a pressurized branch without venting or draining the system—greatly reducing downtime, product loss, and exposure to cryogenic fluid during maintenance. The anti-misalignment handle design ensures the handle is always fitted correctly, and the compact, symmetrical cast body is built for reliable, repeatable flow routing on cryogenic vessels, tank trucks, skids, and manifolds. Every valve is 100% factory tested and manufactured in compliance with CGA G-4.1 oxygen service requirements, qualifying it for oxygen and medical oxygen applications where material compatibility, cleanliness, and ignition safety are critical.

| Working Principle

The Multi-Port (Diverter) Principle:

Unlike a simple two-port on/off ball valve, the DQS25A's ball contains several internal passages arranged so that different rotational positions connect the common inlet to different outlets. In the 5-way diverter configuration, the ball can route the incoming cryogenic flow to a selected outlet port, isolate it, or combine passages as designed—allowing one source of liquid to be distributed to several destinations, or several sources to be selected to one destination, from a single valve. This is the essence of the "three-way / multi-way switching" principle applied at higher capacity: one compact valve replaces multiple two-way valves, reducing leaks, space, and cost in cryogenic manifolds.

Flow Position — Aligned Passages and Full Bore Flow:

When the handle is rotated to a selected position, the ball's passage aligns with the chosen ports, and flow passes through. The full bore (full port) design keeps the flow area equal to the line size, so the liquid passes through with minimal turbulence and pressure drop—important for high-flow cryogenic transfer where throttling would cause flashing and pressure loss. The PCTFE seat rings and brass seat press against the ball surface, forming the tight, low-leakage seal around the flow path that keeps the closed ports dry and leak-free.

Closed / Isolated Position — Passages Turned Away:

When the ball is rotated 90° (or to the isolating position), the passage through the ball turns away from the open ports, and the solid face of the ball presents itself to the flow. The seat rings seal against the ball's spherical surface, blocking flow through the closed ports while the selected port remains open—or isolating the entire valve in the fully closed position. This gives the operator both flow diversion and isolation capability from a single handle.

Quarter-Turn Manual Operation and Anti-Misalignment Handle:

The valve is operated manually: rotating the handle through 90° moves the ball between positions. The anti-misalignment handle design ensures the handle can only be fitted in the correct orientation, preventing incorrect installation that could mislead the operator about the flow path. The long lever provides mechanical advantage and gives a clear visual indication of the selected position. The anti blow-out stem keeps the stem mechanically retained within the body under all operating pressures, preventing hazardous stem ejection.

Relief-Valve Replacement Without Draining — the DQS25A's Signature Feature:

The DQS25A is designed to allow a safety/relief valve on a branch to be replaced without draining or venting the system. In conventional layouts, servicing a relief device requires isolating, draining, and re-pressurizing the line—costly and hazardous with cryogenic fluid. In this valve's design, the flow-routing capability of the diverter ball is used to isolate the relief-device branch while the main flow continues, so the relief valve can be swapped out ("tool-free" / without draining) while the rest of the system remains in service. This greatly reduces downtime, product loss, and operator exposure to cryogenic fluid, and is especially valuable on transport tank trucks and vessel installations where relief devices are safety-critical.

Leak-Proof Sealing at Cryogenic Temperature:

At −196°C, metal components contract at different rates, which is why the valve relies on PCTFE for its seat rings: PCTFE remains resilient and conformable at cryogenic temperatures, pressing tightly against the ball to seal even when the metal dimensions shift. The brass seat provides a stable, machined seating surface. Together they maintain the leak-tight switching that cryogenic vessels, tank trucks, and manifolds require across the full −196°C to +85°C range.

|

 Factory Shoot

|

 Application Video

|

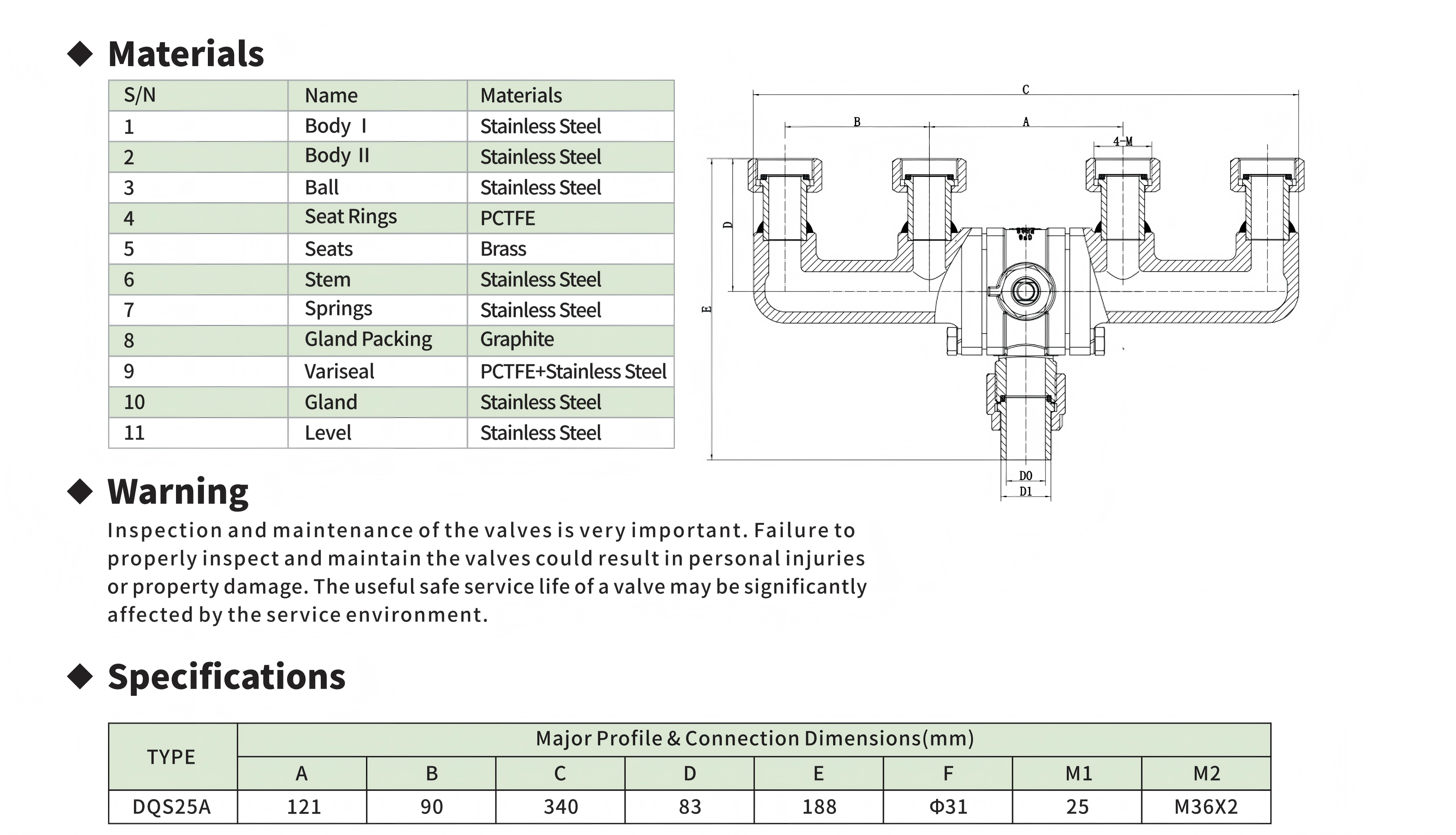

 Product parameters

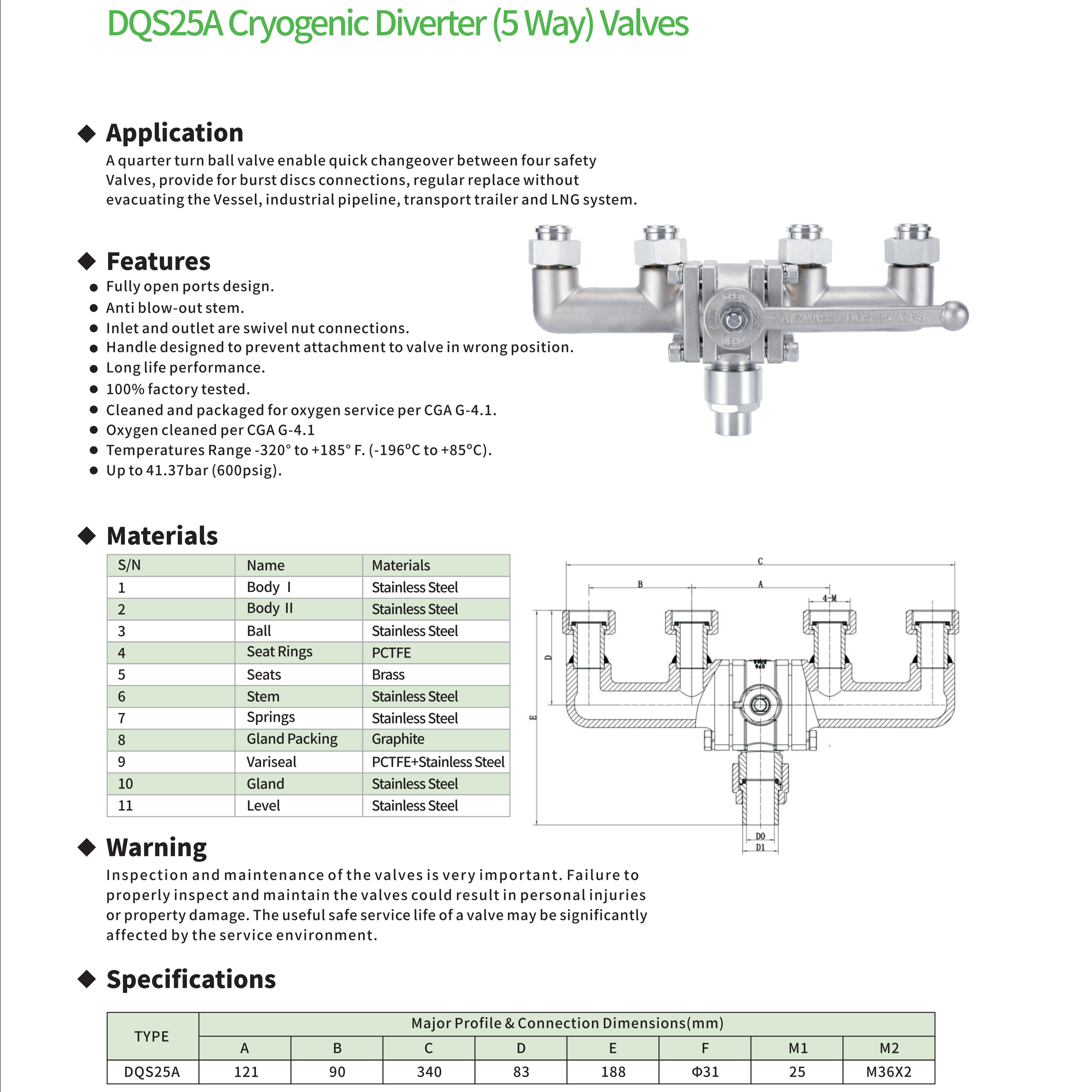

| Data Sheet

|

Comment & FAQ

1:    What is the DQS15F and how is it different from the DQS15C?

A:  The DQS15F is a three-way (3-Way) cryogenic diverter ball valve, while the DQS15C is a five-way (5-Way) diverter. Both use the same core technology—a quarter-turn ball valve with anti blow-out stem, full bore flow path, PCTFE seat rings, and brass seat, in a stainless body rated for −196°C to +85°C and up to 600 psig. They differ in port count and ball passage pattern: the 3-way valve switches flow between a common inlet and two outlet branches, while the 5-way valve routes flow among five ports. The DQS15F additionally integrates two safety-valve ports on top and a rupture-disc port at the bottom directly into its body. Choose the 3-way when you need simple two-branch changeover; choose the 5-way for more complex multi-branch routing.

2.   What does "3-Way" mean on a cryogenic ball valve?

A: "3-Way" means the valve has three connection ports and can switch flow among them. In the DQS15F, the ball is configured with a T-port or L-port passage pattern: the T-port connects a common inlet to either of two outlets (or connects the two outlets while isolating the inlet); the L-port shifts the flow from one outlet to the other with each 90° rotation. This lets a single three-way valve perform changeover, diversion, or isolation that would otherwise require two or more two-way valves. The 90° quarter-turn operation makes each switch fast and unambiguous, with the handle position giving visual confirmation of the active flow path.

3.  Why are there safety-valve ports and a rupture-disc port on the valve body?

A: These ports let you mount overpressure-protection devices directly on the transfer line at the same point as the switching valve. The two threaded safety-valve ports on top accept spring-loaded safety valves, which vent pressure at a set point; the rupture-disc port at the bottom accepts a rupture disc, which bursts and vents the line if pressure rises faster than the relief valve can handle—or to the disc's burst pressure. This is valuable on portable tanks and transfer lines where mounting space is limited: instead of installing a separate tee with relief devices, the valve body itself provides the mounting points. It consolidates flow control and pressure protection into one compact, safe installation. (Relief devices are supplied/installed according to your system configuration; the manufacturer's specification applies.)

4.   What is an anti blow-out stem and why is it critical?

A:  An anti blow-out stem is a stem whose shoulder is mechanically trapped inside the valve body, so internal pressure cannot push the stem out of the valve. In cryogenic service this is critical because the media is a liquefied gas under high pressure: a conventional stem held only by a gland can be ejected if the gland loosens under thermal cycling or vibration, releasing a violent jet of liquid that flashes to gas and can cause severe injury, equipment damage, and fire hazards. The DQS15F's stem is retained by design, guaranteeing the stem stays in place even if the packing is compromised. This is a fundamental safety requirement for pressurized cryogenic service.

5.   What does "full bore" mean and why does it matter for cryogenic transfer?

A:  Full bore (full port) means the flow area through the ball and valve is equal to the nominal size of the connecting line—there is no reduced-diameter throat inside the valve. This matters for cryogenic transfer for three reasons: (1) low pressure drop—the fluid passes through with minimal resistance, preserving system pressure; (2) high flow rate—no bottleneck, so the maximum transfer rate is achieved; and (3) reduced flashing and turbulence—cryogenic liquids are near their boiling point, and throttling at a reduced port causes flashing (rapid vaporization) and pressure loss that reduce transfer efficiency. A full-bore diverter keeps the flow path clean and unrestricted, which is why it is preferred for high-flow LOX, LIN, and LNG transfer service.

6.    What should I consider during installation and operation?

A: Installation: (1) use the inner/outer union nut connections with a thread sealant/tape suitable for the service gas and cryogenic temperature; (2) align the pipework so no bending or torsional stress is imposed on the body—cryogenic piping contraction and expansion create large loads; (3) mount any safety valves and the rupture disc on the designated body ports per the manufacturer's specification, verifying orientation; (4) support the valve and adjacent pipework to prevent stress transfer; (5) verify the selected port orientation matches your flow routing diagram before pressurizing. Operation: (1) rotate the handle with a deliberate 90° travel—do not force beyond the stops; (2) use the OPEN/CLOSE position indication to confirm the flow path before opening flow; (3) for oxygen service, follow CGA G-4.1 cleanliness and handling requirements (where applicable); (4) allow for thermal contraction and provide cryogenic protection to prevent icing affecting the handle.
