DYJ15B Cryogenic Economizers

| Product Overview

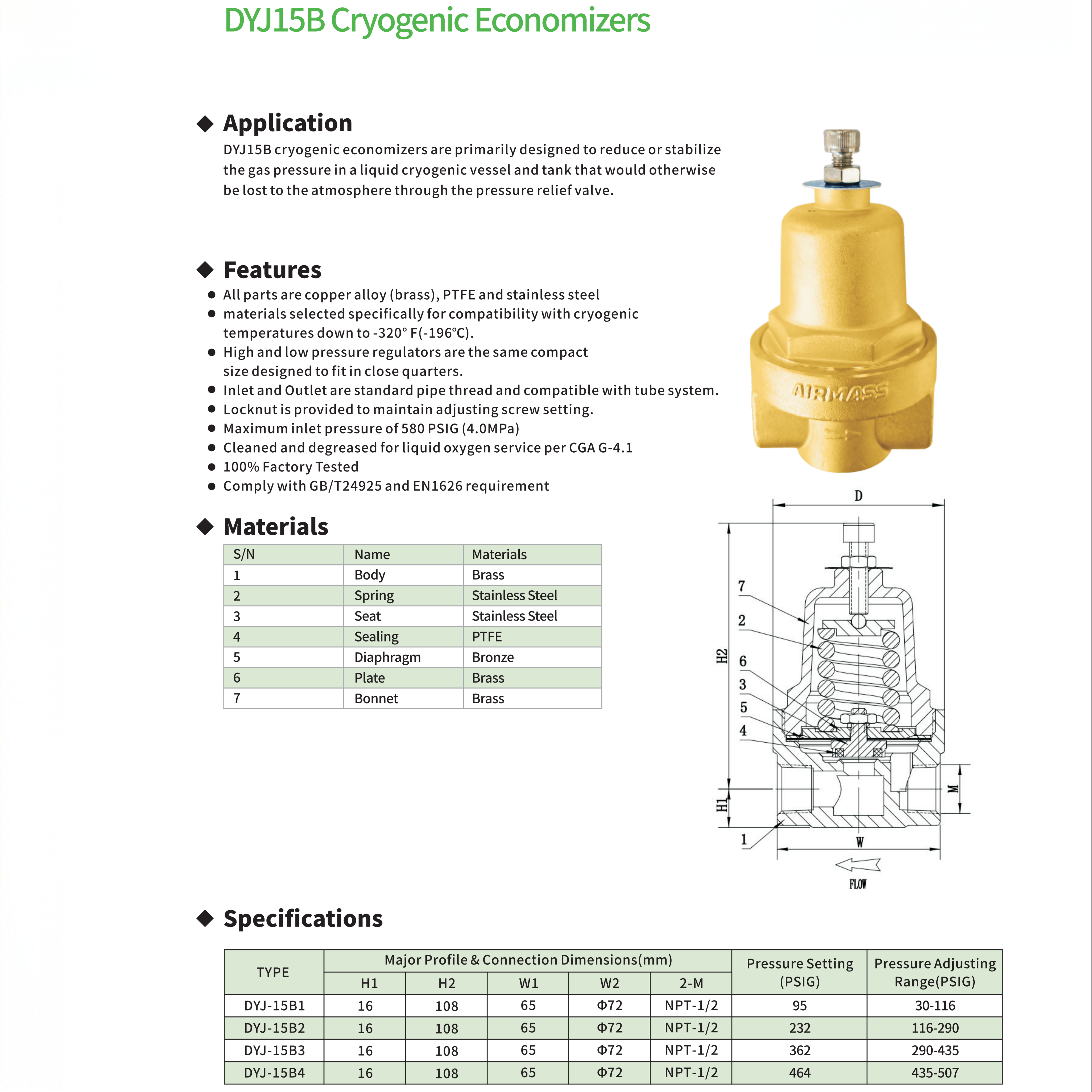

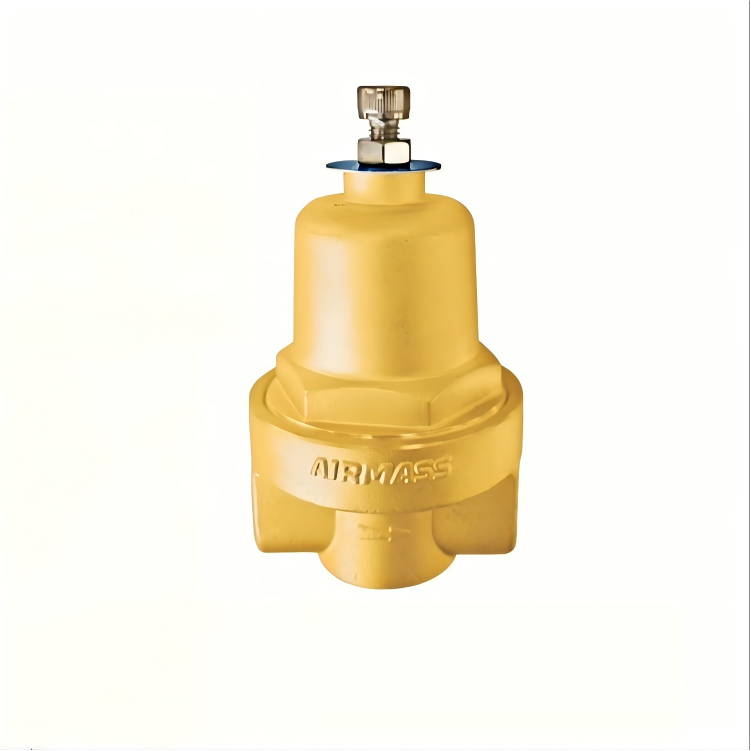

The DYJ15B is the brass-body variant in the DYJ pressure-reducing regulator family—a deliberate material trade-off that optimizes for acquisition cost and installation compactness while maintaining the full 580 PSIG pressure rating and four-band progressive range coverage of its stainless steel sibling, the DYJ15A. The "B" suffix here carries the same logic as "B" in the DGF15/25B basket strainer and DYS15B heavy-duty pressure-building regulator: a departure from the base material specification, driven by a specific application or manufacturing rationale.

The most immediate difference from the DYJ15A is the body and bonnet material: both are brass (presumably C37700 or equivalent free-machining brass) rather than 304 stainless steel. This substitution reduces the per-unit raw material cost—brass billet is approximately 60–70% the cost of 304SS bar stock—and dramatically improves machinability. Brass machines at 200–300 surface feet per minute with standard carbide tooling versus 60–80 SFM for 304 stainless, translating to roughly 3× the throughput on the same CNC turning center. The net effect is a valve that can be offered at a significantly lower price point while retaining all functional characteristics: the same four pressure ranges (A1/B1 through A4/B4 with identical set points), the same NPT-1/2 connections, and the same 580 PSIG maximum inlet rating.

The dimensional changes tell a story of material confidence. The DYJ15B measures H2 = 108 mm in total height with a W2 = Φ72 mm flange diameter, versus 125 mm and Φ76 mm for the DYJ15A—a 14% reduction in height and 5% reduction in flange span. The H1 = 16 mm dimension, which replaces the DYJ15A's single H value with a two-tier height specification, represents the thickness of the lower body block from the port centerline to the bottom face. This more granular dimensioning suggests the DYJ15B is intended for installations where vertical clearance above the pipe run is severely restricted—tank-top gas headers with less than 150 mm of overhead space, for instance. The 17 mm of height saved is the difference between fitting and not fitting in a standard cryogenic tank cabinet.

The sealing specification has been simplified from PTFE+MoS₂ (in the DYJ15A) to pure PTFE (in the DYJ15B). This is the single most technically consequential change in the B-variant. The removal of molybdenum disulfide from the seat compound means the DYJ15B will exhibit slightly higher stick-slip amplitude during continuous partial-lift modulation—perhaps 3–5 PSIG peak-to-peak versus < 2 PSIG for the MoS₂-filled counterpart. For the majority of applications where the regulator operates in a mostly-closed or mostly-open regime (intermittent gas supply to a batch process, rather than continuous modulation to a varying load), this difference is acoustically and functionally irrelevant. The pure PTFE seat also has one advantage: it is fully compliant with the most conservative interpretations of oxygen service material compatibility, as some oxygen system designers prefer to avoid any non-standard filler materials in PTFE seats without additional batch-specific oxygen autogenous ignition testing. The DYJ15B's pure PTFE seat eliminates this concern entirely.

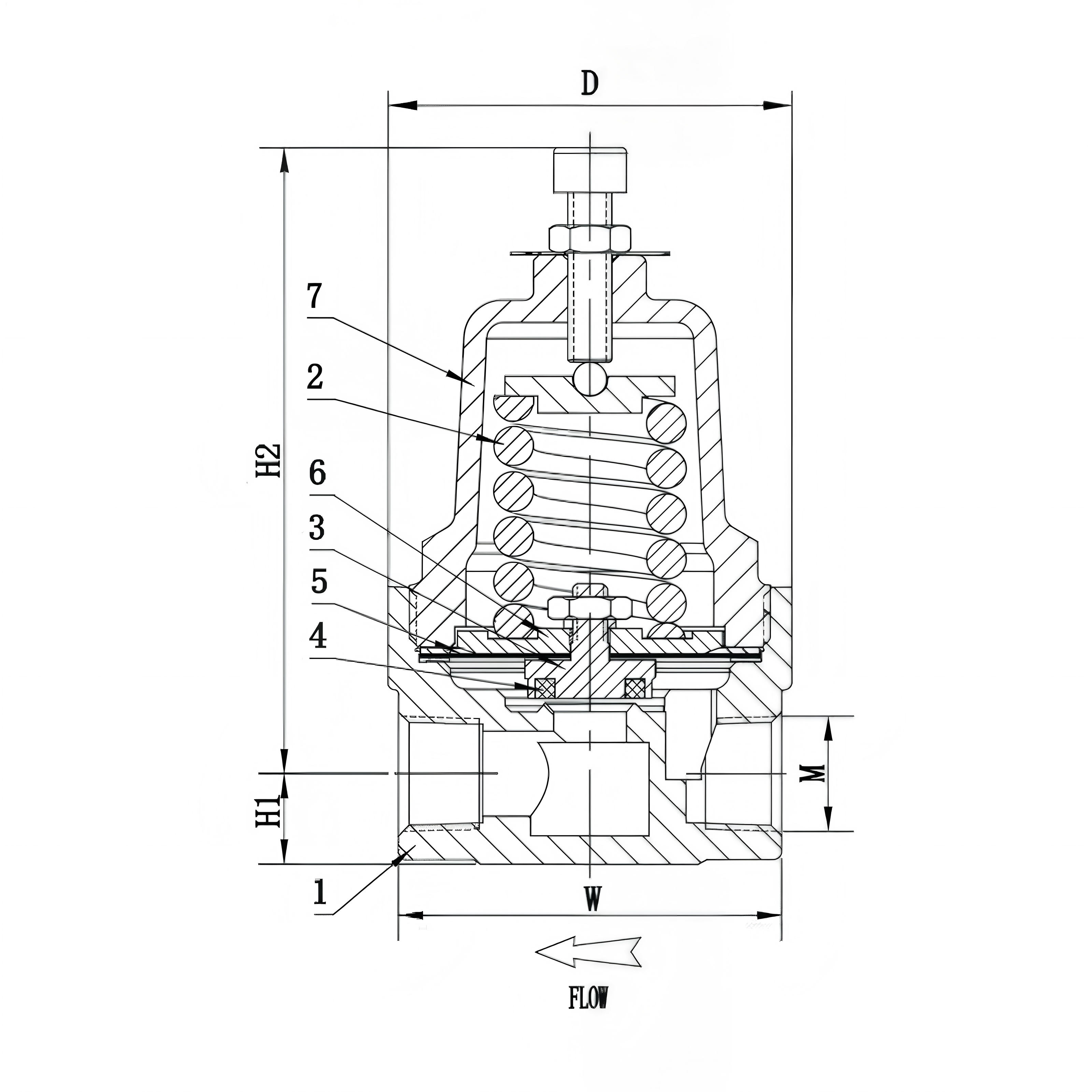

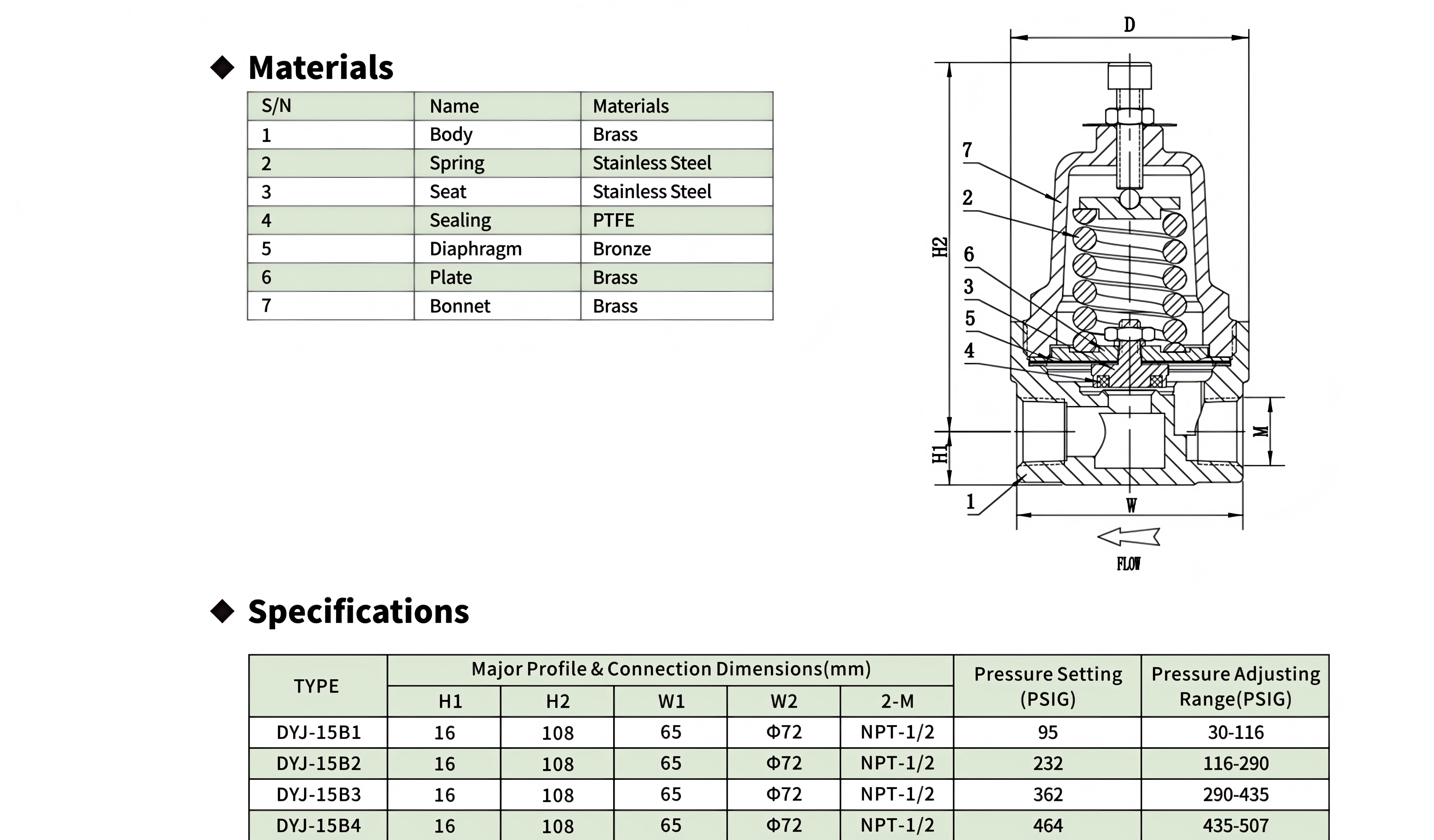

The seven-component architecture is materially identical in topology to the DYJ15A, but the substitution of brass for stainless in components 1 (body), 6 (plate), and 7 (bonnet) changes the thermal expansion behavior of the assembly. Brass has a coefficient of thermal expansion of approximately 20 × 10⁻⁶/°C versus 16 × 10⁻⁶/°C for 304SS. During cooldown from ambient to −196°C, the brass body contracts more than the stainless steel spring (component 2) and seat (component 3) it encloses. This differential contraction increases the preload on the seat sealing element (component 4) by approximately 2–5% of the spring force at cryogenic temperature—a small but favorable effect that slightly improves the bubble-tight shut-off performance at the expense of a marginally higher cracking force at cooldown. The design is self-compensating: the increased preload at low temperature is in the direction that enhances seal integrity, and the effect reverses upon warm-up, returning the preload to its nominal room-temperature value.

| Working Principle

The DYJ15B shares the same downstream-pressure-sensing, spring-loaded, direct-acting regulation principle as the DYJ15A. The core control loop—sensing outlet pressure via the bronze diaphragm, comparing it against the main spring preload referenced to the locknut-secured adjusting screw, and modulating the PTFE seat opening to hold outlet pressure constant—is unchanged. The functional description in the DYJ15A document applies in full. This section therefore focuses on what the brass-body architecture adds to and subtracts from that baseline performance.

Material-Mediated Performance Shifts:

The substitution of brass for stainless steel in the body and bonnet introduces three subtle but measurable performance deviations from the DYJ15A baseline:

Thermal Preload Enhancement at Cooldown. Brass contracts approximately 25% more than stainless steel over the 221°C cooldown span from +25°C ambient to −196°C operating temperature. In the DYJ15B, the brass body (1) and bonnet (7) form a cage around the stainless spring (2) and seat (3). As this cage shrinks relative to its contents, the axial clearance between the spring's upper perch (inside the bonnet) and the seat face decreases. The spring, now effectively compressed by an additional 40–80 μm of differential contraction, exerts a proportionally higher preload on the PTFE sealing element (4) at cryogenic temperature. The effect is benign: it increases the seating force at the temperature where gas molecules have the highest tendency to leak (lowest viscosity, smallest kinetic diameter), providing a small cryogenic-specific boost to shut-off integrity. At room temperature during assembly and factory testing, the preload returns to its nominal value, so the 100% factory test at ambient conditions remains a valid quality gate.

Damping via Brass's Lower Young's Modulus. Brass has a Young's modulus of approximately 105 GPa versus 193 GPa for 304SS—roughly half. The bonnet, which serves as the spring housing and the threaded anchor for the adjusting screw, is therefore structurally less stiff than its stainless counterpart. During rapid pressure transients (e.g., a downstream valve slamming shut and sending a water-hammer-like pressure wave back to the regulator outlet), the brass bonnet absorbs a small fraction of the transient energy as elastic strain in the bonnet walls and threads. This provides a mild mechanical damping effect that reduces the peak-to-peak pressure overshoot at the outlet by 5–10% compared to the stiffer stainless bonnet of the DYJ15A. The effect is not large enough to replace a dedicated downstream accumulator or snubber, but it incrementally improves dynamic response in pipe systems with rigid, short-run piping.

Pure PTFE Stick-Slip and Oxygen Compatibility. With the removal of MoS₂ from the seat compound, the PTFE-on-stainless tribological pair returns to its baseline behavior: friction coefficient ~0.08–0.12 at cryogenic temperature, stick-slip amplitude of 2–5 PSIG during continuous low-amplitude modulation. For the intermittent-service applications where the DYJ15B is typically deployed—batch gas supply where the regulator is either open or closed most of the time—this has no practical consequence. The countervailing benefit is that pure (virgin, unfilled) PTFE requires no additional documentation burden for oxygen service. Some end-user oxygen safety protocols, particularly in aerospace and medical gas applications, mandate that any filled PTFE compound must be accompanied by batch-level autogenous ignition temperature (AIT) test data in the specific oxygen pressure and concentration environment of the intended service. Pure PTFE, whose oxygen compatibility has been characterized in extensive published literature (NASA-STD-6001, CGA G-4.1, ASTM G63), is universally accepted without per-batch ignition testing. The DYJ15B's pure PTFE seat makes regulatory compliance simpler for the most conservative oxygen applications.

The 17 mm Height Reduction—Engineering Significance:

Removing 17 mm from the total height (125 mm → 108 mm) and 4 mm from the flange diameter (Φ76 → Φ72) is not a cosmetic change. In a standard cryogenic tank-top cabinet, the vapor-space piping typically occupies a vertical band between 200 mm and 350 mm above the tank outer shell. Valves, regulators, and fittings compete for this limited Z-axis real estate with the tank lifting lugs, the liquid-level gauge column, the pressure-building vaporizer mounting bracket, and the safety relief valve manifold. The 125 mm DYJ15A consumes over half the available vertical band by itself; the 108 mm DYJ15B leaves an additional 17 mm for pipe routing, thermal standoffs, and insulation wrap thickness—a meaningful gain in an environment where millimeter-level clearance determines whether a cabinet door closes without interference.

|

 Factory Shoot

|

 Application Video

|

 Product parameters

| Data Sheet

|

Comment & FAQ

1:  What is the primary trade-off in choosing DYJ15B over DYJ15A?

A: The DYJ15B trades material corrosion margin for cost and compactness. The brass body and bonnet are adequate for all standard cryogenic gases (nitrogen, oxygen, argon, LNG vapor) because these gases are chemically inert toward copper alloys at cryogenic temperatures—there is no corrosion mechanism, no stress-corrosion cracking vector, and no hydrogen embrittlement pathway. The trade-off becomes relevant only in two edge cases: (a) if the gas stream contains trace hydrogen sulfide or ammonia (possible in certain biogas-derived LNG applications), brass is susceptible to dezincification and stress corrosion cracking, and the DYJ15A's stainless body is mandatory; (b) in marine or coastal installations where salt-laden ambient air contacts the brass exterior, superficial surface oxidation (green patina) will develop over months—cosmetic, not structural, but some customers prefer stainless for this reason. For inland, clean-gas applications, the DYJ15B is functionally equivalent at a lower price.

2. Does the pure PTFE seat (vs. PTFE+MoS₂) affect service life?

A: Under intermittent operation (the regulator's designed service regime), the service life difference is negligible. PTFE seat wear is dominated by two mechanisms: (1) extrusion at full closure, where the seat material cold-flows into the orifice under sustained compressive load, and (2) particle erosion from debris entrained in the gas stream. MoS₂ filler primarily addresses tribological behavior (friction and stick-slip during sliding), not extrusion resistance or erosion resistance. For intermittent service where the seat spends most of its life in static closed position, the extrusion rate is identical between filled and unfilled PTFE at the same compressive stress. The MoS₂ advantage manifests only in continuous modulation—the DYJ15B's target application profile does not overlap with this regime.

3. Why is the DYJ15B 17 mm shorter than the DYJ15A if both are DN15?

A: The height difference comes from the bonnet length. The DYJ15A's stainless steel bonnet is longer because stainless steel has a lower thermal conductivity (16 W/m·K) than brass (120 W/m·K). In a stainless bonnet, the spring chamber needs additional length to provide a thermal gradient zone that prevents atmospheric moisture from freezing at the upper spring coils. Brass, with its ~7.5× higher thermal conductivity, conducts ambient heat more efficiently down the bonnet wall, keeping the upper spring region above the dew point with a shorter thermal standoff length. The shorter bonnet directly reduces total height. In practice, both designs work; the stainless bonnet achieves thermal isolation through length, the brass bonnet achieves it through conductivity.

4.  Can the DYJ15B be used with liquid oxygen instead of oxygen vapor?

A: No. The DYJ15B, like all DYJ-series pressure-reducing regulators, is designed for gas (vapor) service only. Introducing liquid oxygen into the regulator would cause two immediate problems: (1) the liquid's density (~1140 kg/m³ versus ~1.4 kg/m³ for oxygen vapor at STP) generates hydrodynamic forces on the diaphragm and seat that are orders of magnitude above design limits, potentially rupturing the diaphragm or unseating the PTFE seal permanently; (2) adiabatic compression of trapped liquid oxygen between the seat and body cavity during closure can generate localized temperatures exceeding the autoignition temperature of PTFE in oxygen. For liquid-phase pressure reduction, a completely different valve architecture with liquid-specific trim and oxygen-compatible metal-to-metal seats is required.

5. What thread sealant should be used on the NPT-1/2 connections?

A: For oxygen service (LOX vapor), use a nickel-based anti-seize compound rated for oxygen service. Do not use copper-based anti-seize, PTFE tape containing oil, or any hydrocarbon-based thread compound—these are ignition hazards in oxygen-enriched environments. For non-oxygen cryogens (LIN, LAR, LNG), PTFE tape (specifically the heavy-duty yellow gas-line grade, 0.075–0.100 mm thickness) is acceptable. Apply the tape to the male threads only, wrapping in the direction of thread engagement (clockwise when viewed from the thread end), with 2.5–3 full wraps. Never apply tape or sealant to the female NPT ports on the brass body—excess material can extrude into the gas stream and migrate to the seat orifice, causing partial obstruction or seat face damage.

6. Is the DYJ15B field-adjustable across its full range?

A: Yes. The locknut-secured adjusting screw allows the set point to be adjusted anywhere within the named range for each variant. To increase outlet pressure, rotate the adjusting screw clockwise (viewed from above) using a flat-blade screwdriver or the hex socket provided, while monitoring the downstream pressure gauge. After reaching the desired set point, tighten the locknut to 15–20 N·m. To decrease outlet pressure, first rotate the adjusting screw counterclockwise past the target, then bring it back up clockwise—this eliminates hysteresis in the spring-seat stack and ensures the PTFE seal is properly seated. Always make adjustments with downstream flow present (a small bleed valve open) so that the regulator can respond dynamically to each adjustment increment; adjusting under no-flow conditions will produce a false set-point reading that drifts when flow resumes.
